| Typical batch sizes (Gal) |
Circulation rate (GPM) |
Diffusion of solids max. (lb/hr) |
Motor power (HP) |
Data Sheet | Drawing | |
|---|---|---|---|---|---|---|
| CMX 2000/03 (magic LAB) | 0.5 - 4 | 10 | 550 | 1.5 |  |
|

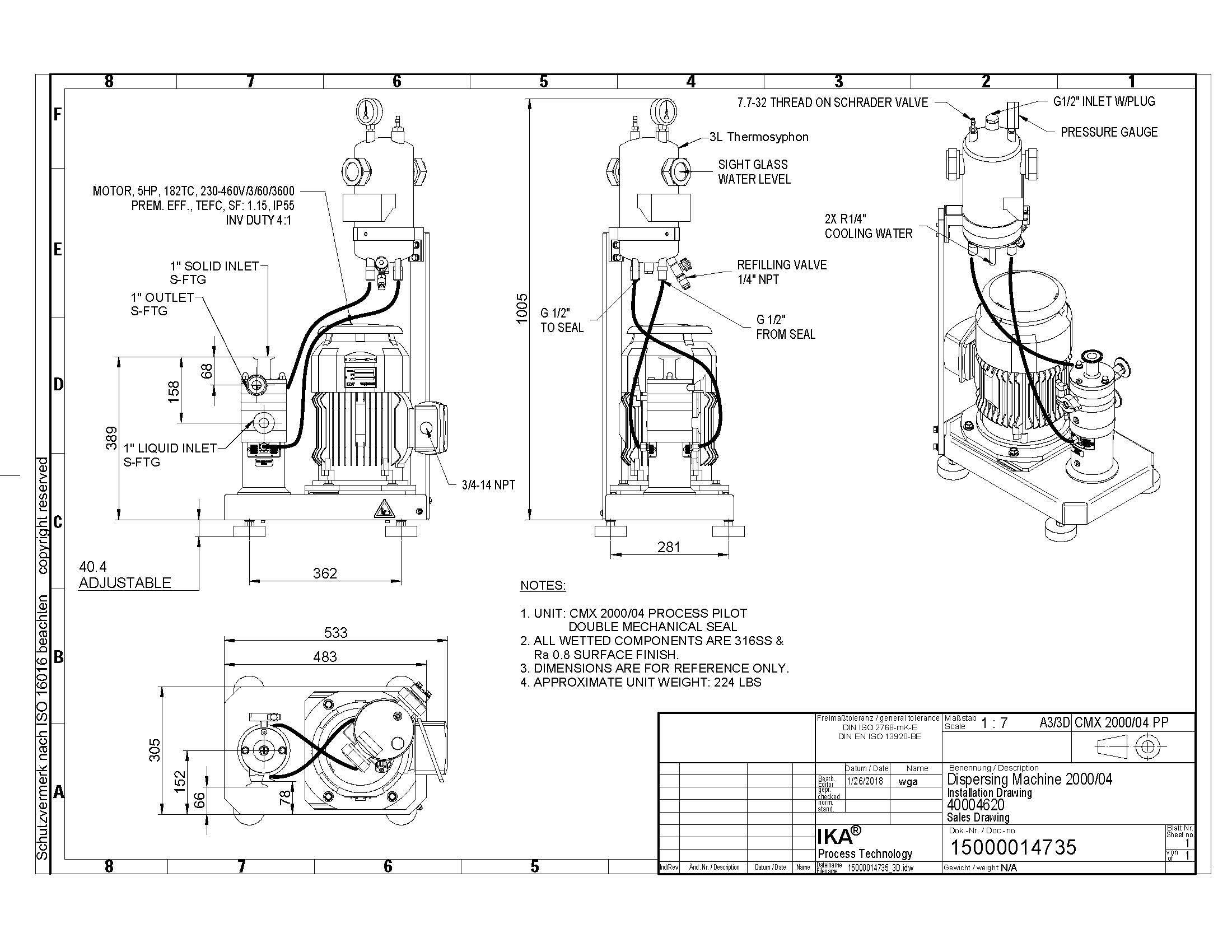

| CMX 2000/04 (PROCESS-Pilot) | 5 - 65 | 20 | 2900 | 5 | |
 |

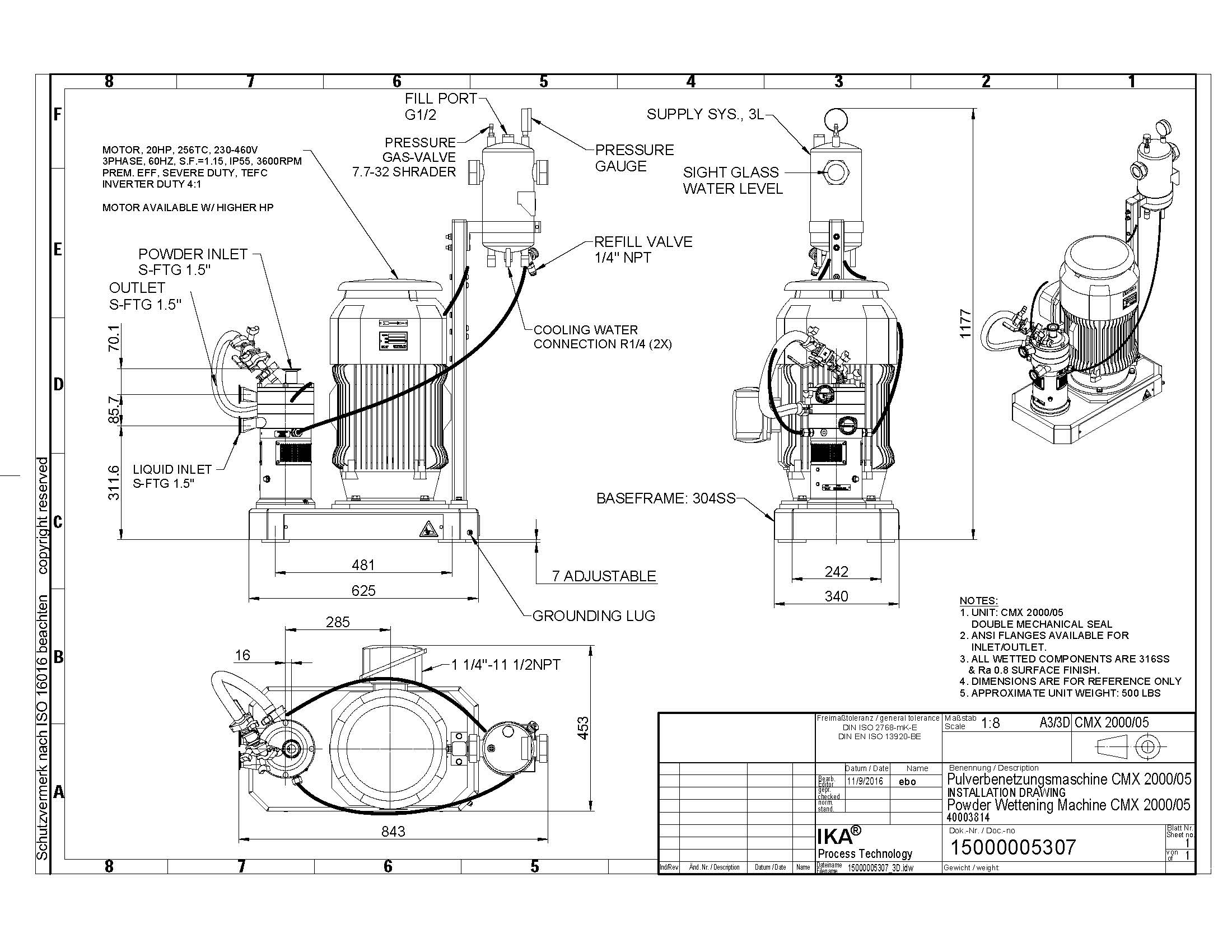

| CMX 2000/05 | 25 - 250 | 60 | 10400 | 20 | |
 |

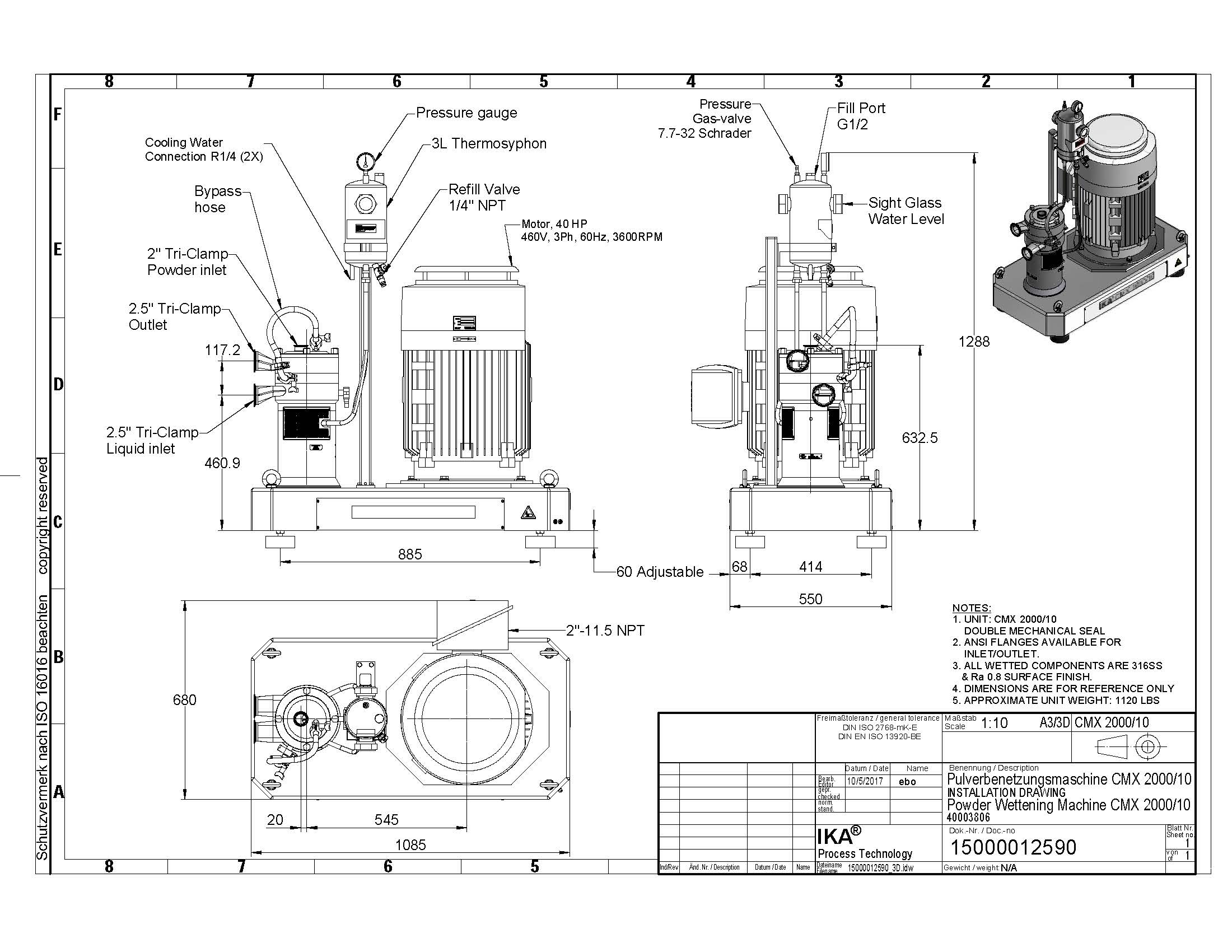

| CMX 2000/10 | 50 - 660 | 140 | 19600 | 40 | |
 |

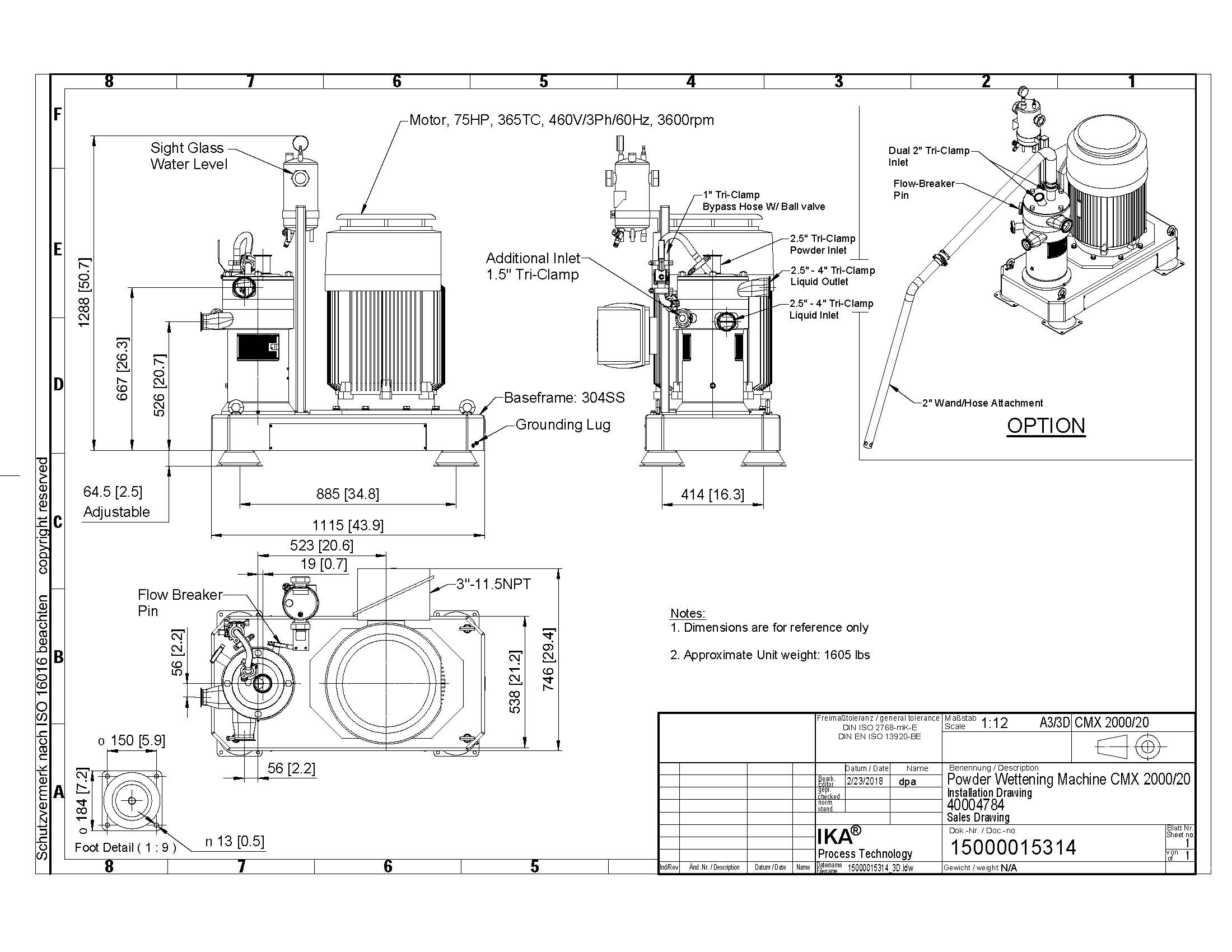

| CMX 2000/20 | 200 - 2100 | 310 | 35700 | 75 | |
 |
| CMX 2000/30 | 800 - 3900 | 480 | 56200 | 150 | |
|
| CMX 2000/50 | >1600 | 880 | 101400 | 250 | |
