| Flow rate (max.) (gpm) |
Motor power max. (HP) |
Motor power min. (HP) |
Rotor rotational speed (rpm) |
Data Sheet | Drawing | |
|---|---|---|---|---|---|---|

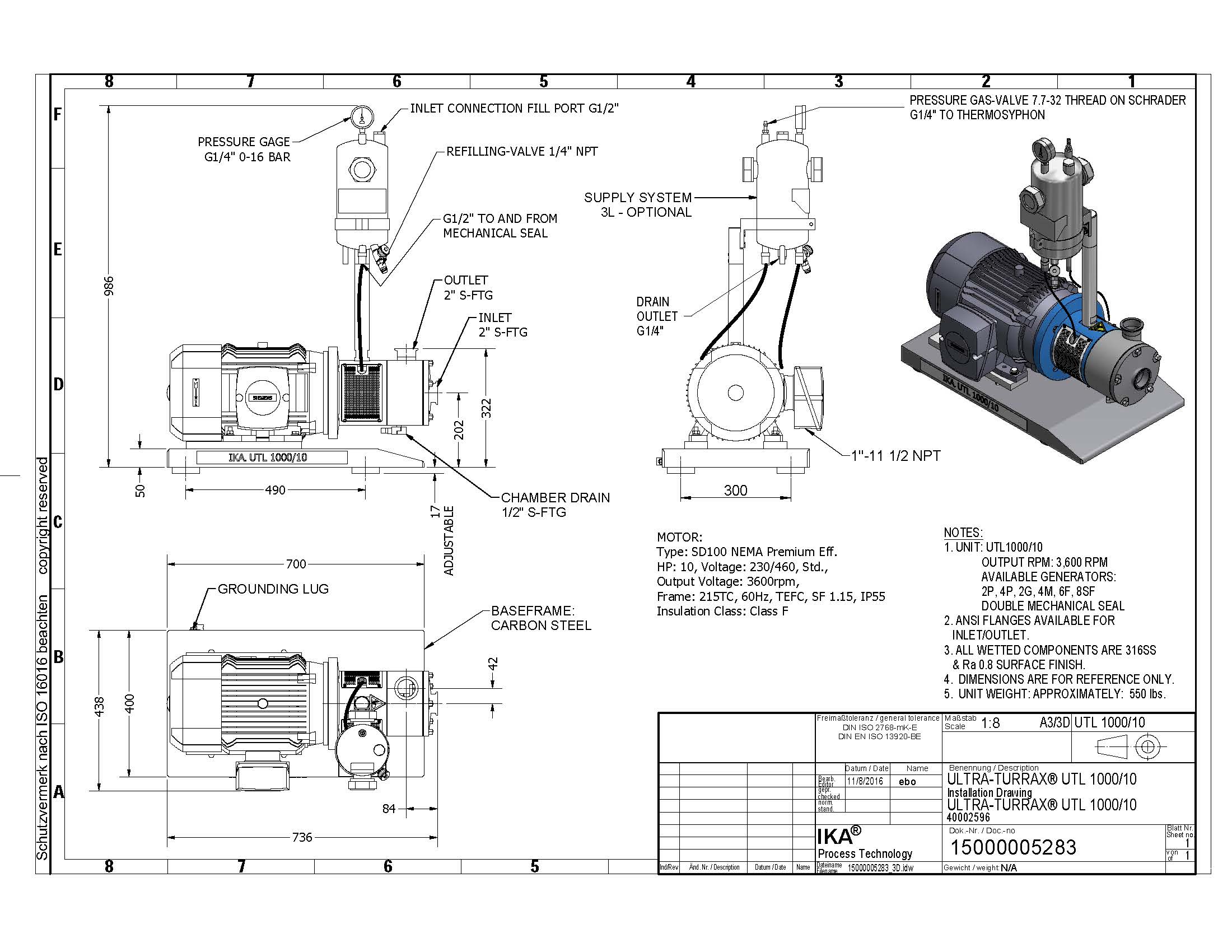

| ULTRA-TURRAX UTL 1000/10 | 35 | 10 | 7.5 | 3600 |  |
 |

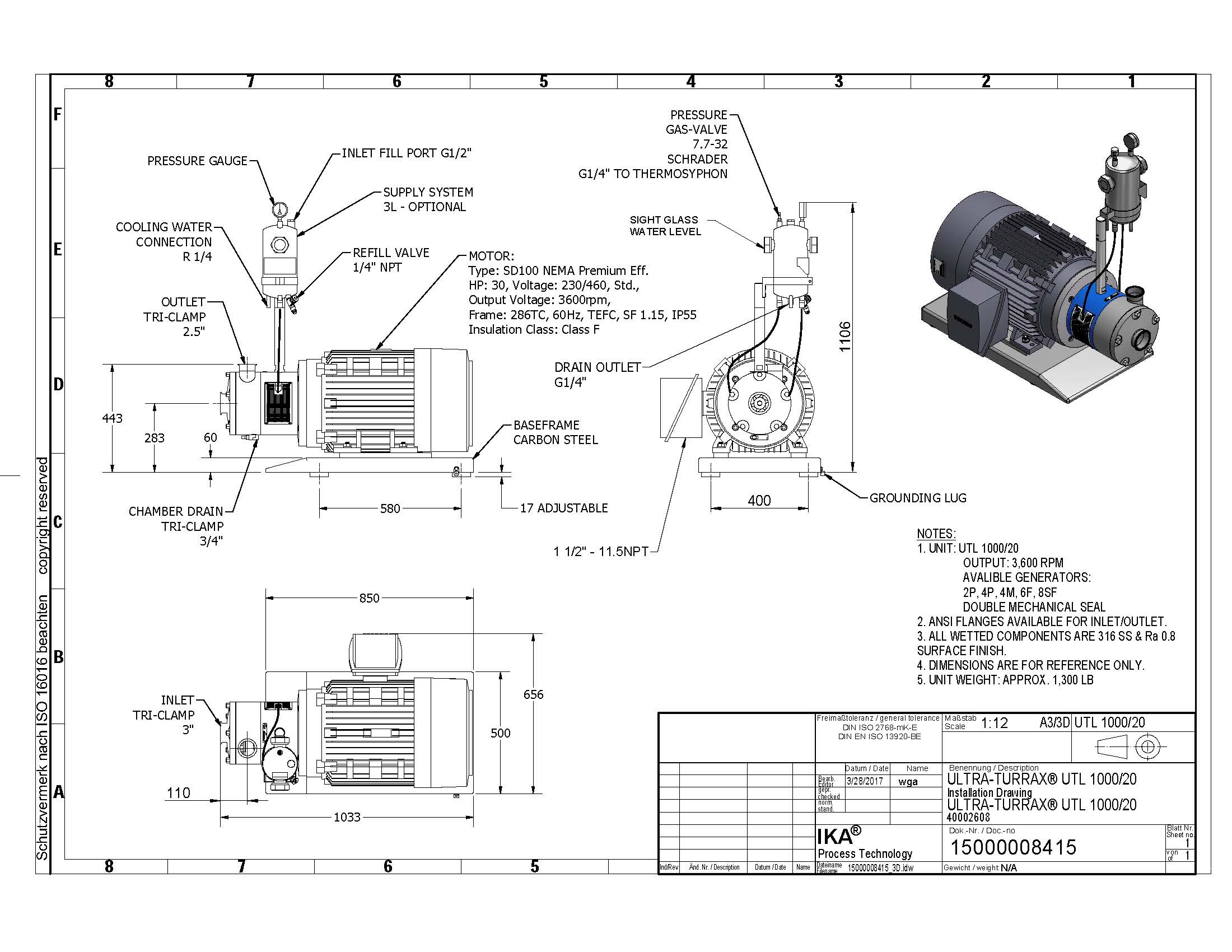

| ULTRA-TURRAX UTL 1000/20 | 100 | 40 | 30 | 3600 | |
 |

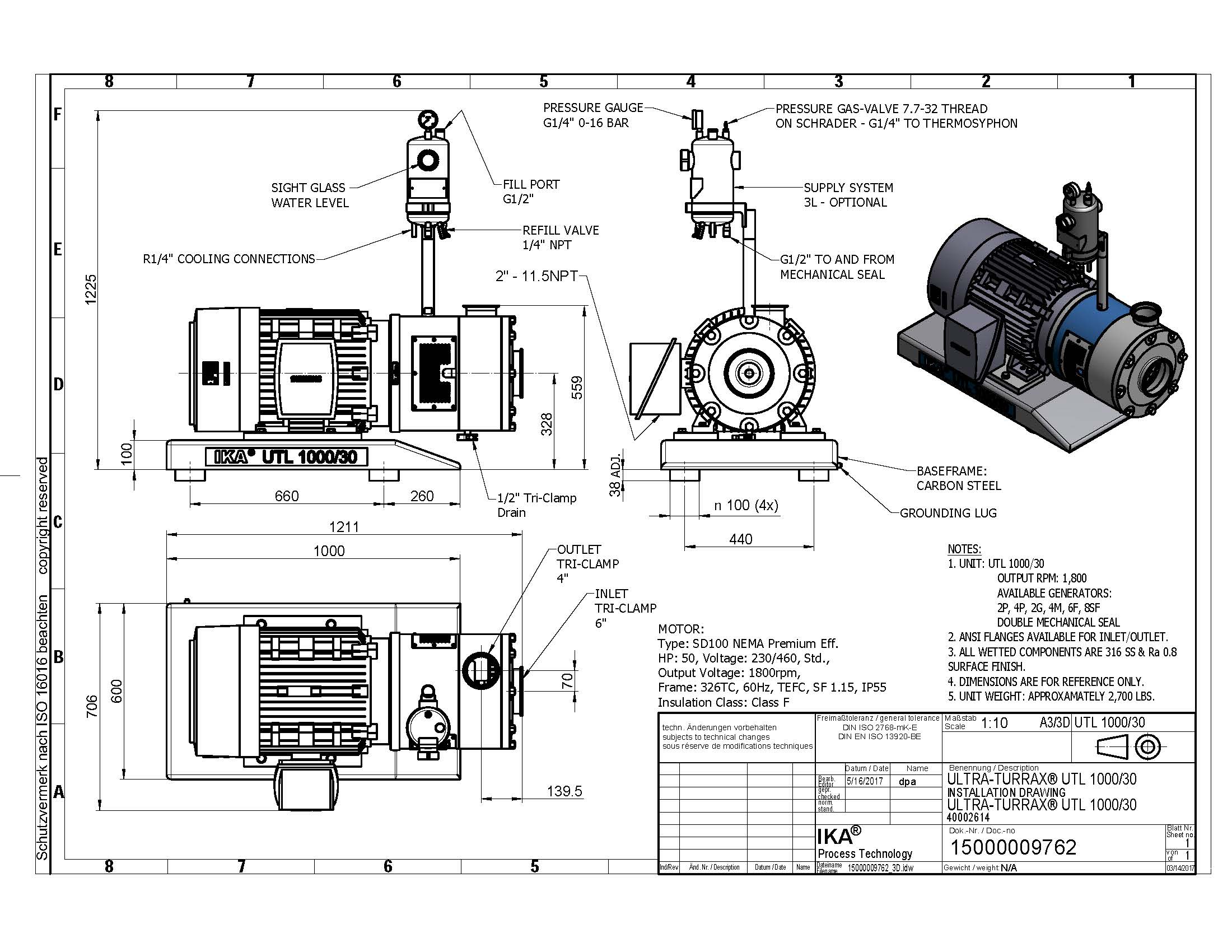

| ULTRA-TURRAX UTL 1000/30 | 200 | 75 | 50 | 1800 | |
 |

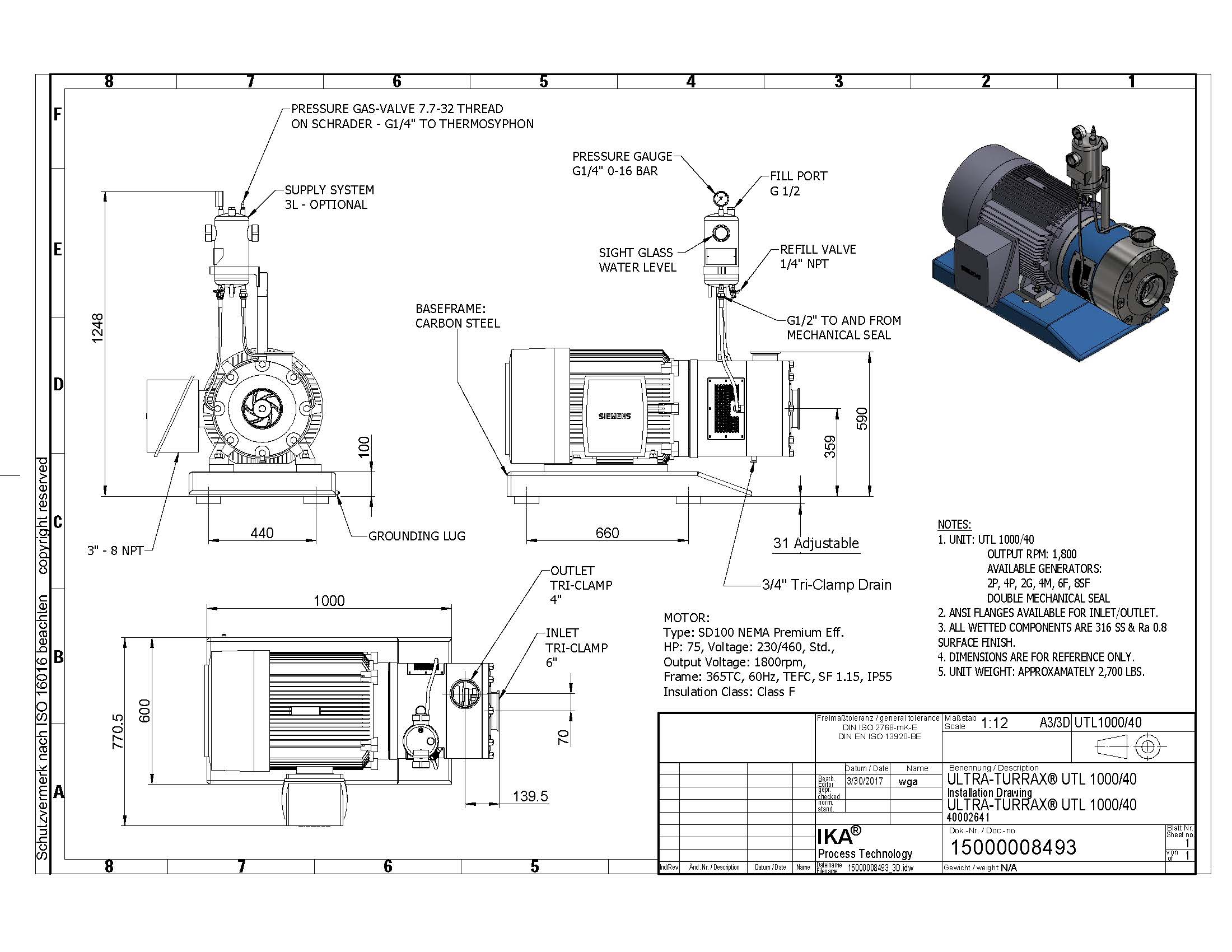

| ULTRA-TURRAX UTL 1000/40 | 400 | 100 | 75 | 1800 | |
 |

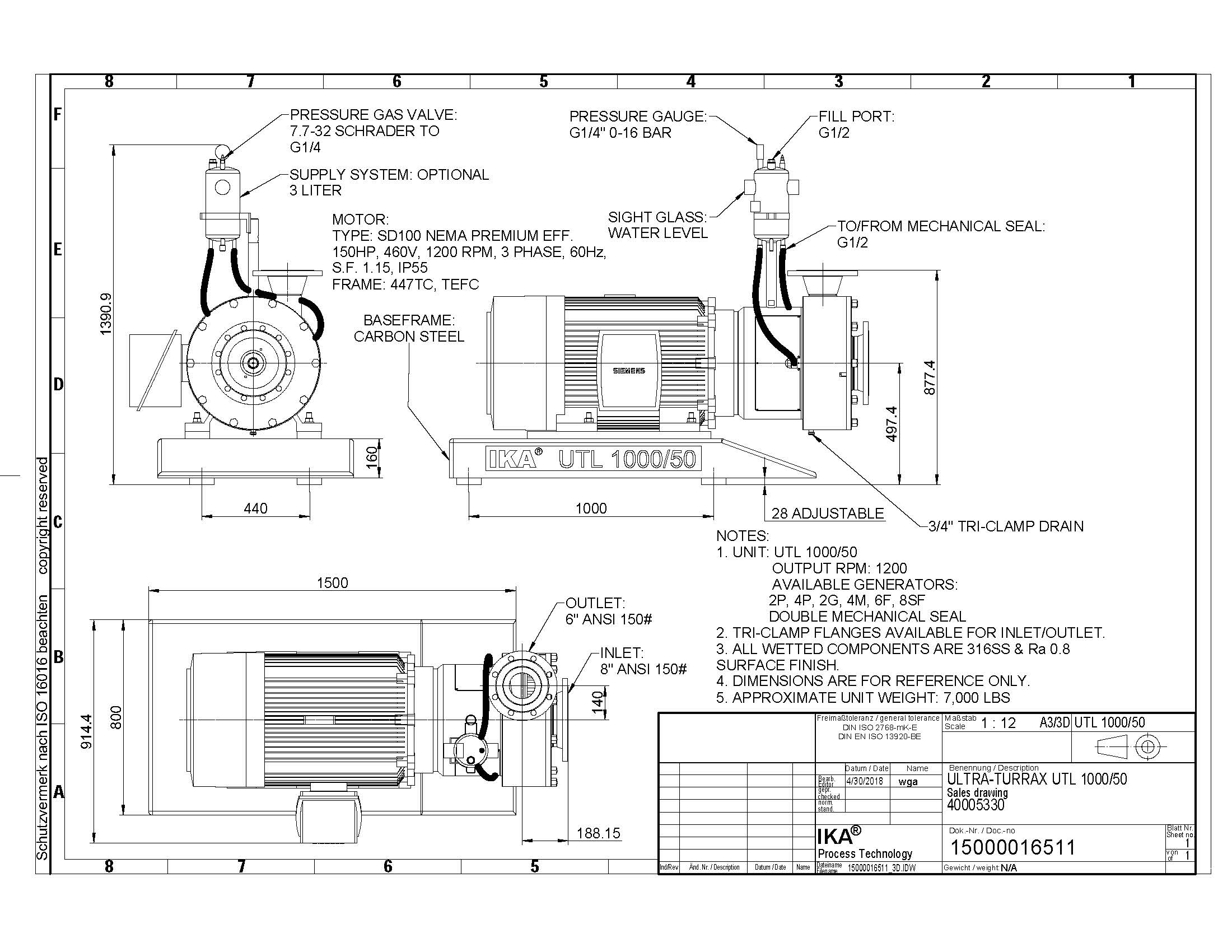

| ULTRA-TURRAX UTL 1000/50 | 600 | 200 | 125 | 1200 | |
 |
