| Flow rate (max.) (gpm) |
Motor power (HP) |
Rotor rotational speed (rpm) |
Data Sheet | Drawing | |
|---|---|---|---|---|---|

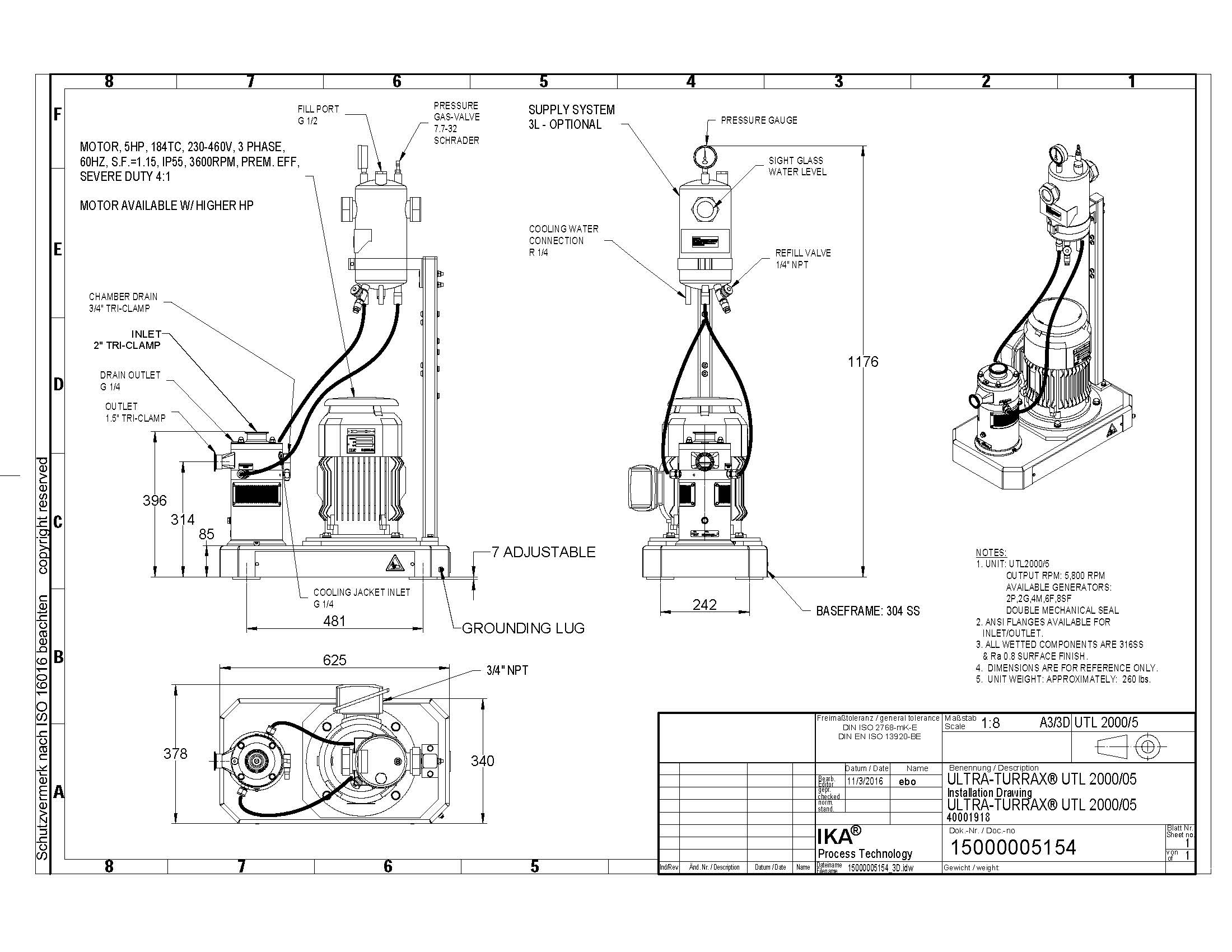

| ULTRA-TURRAX® UTL 2000/05 | 10 | 5 | 5800 |  |
 |

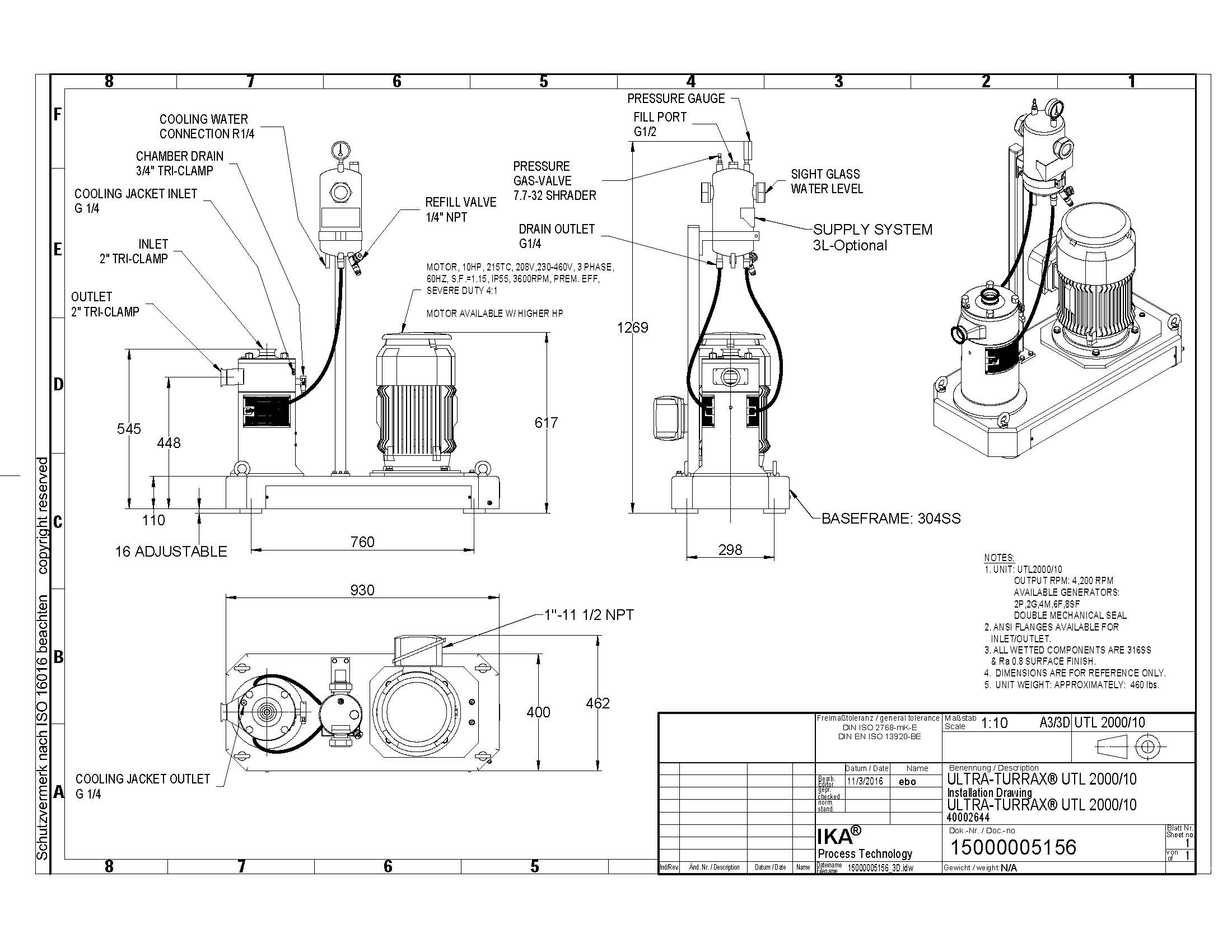

| ULTRA-TURRAX® UTL 2000/10 | 35 | 10 | 4200 | |
 |

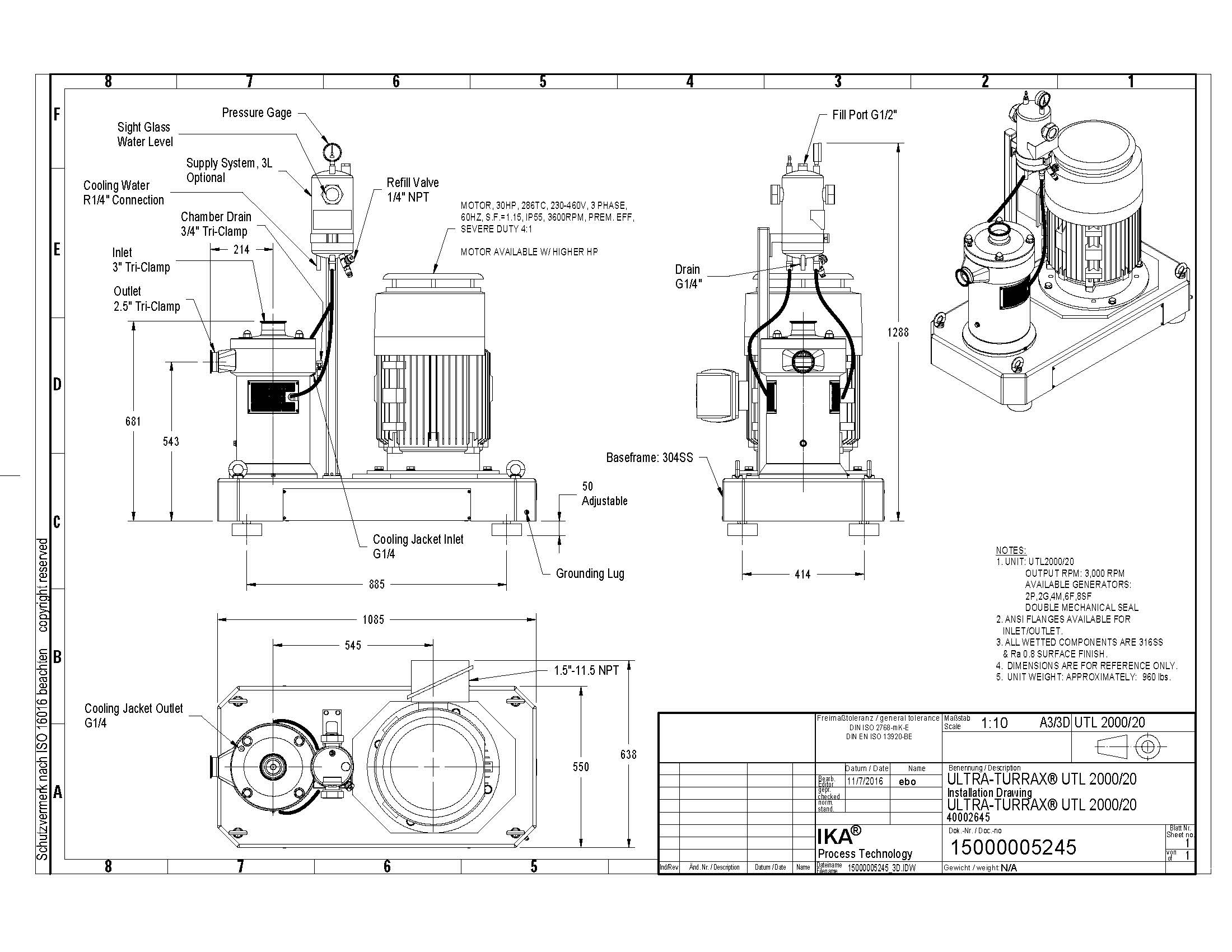

| ULTRA-TURRAX® UTL 2000/20 | 90 | 30 | 3000 | |
 |

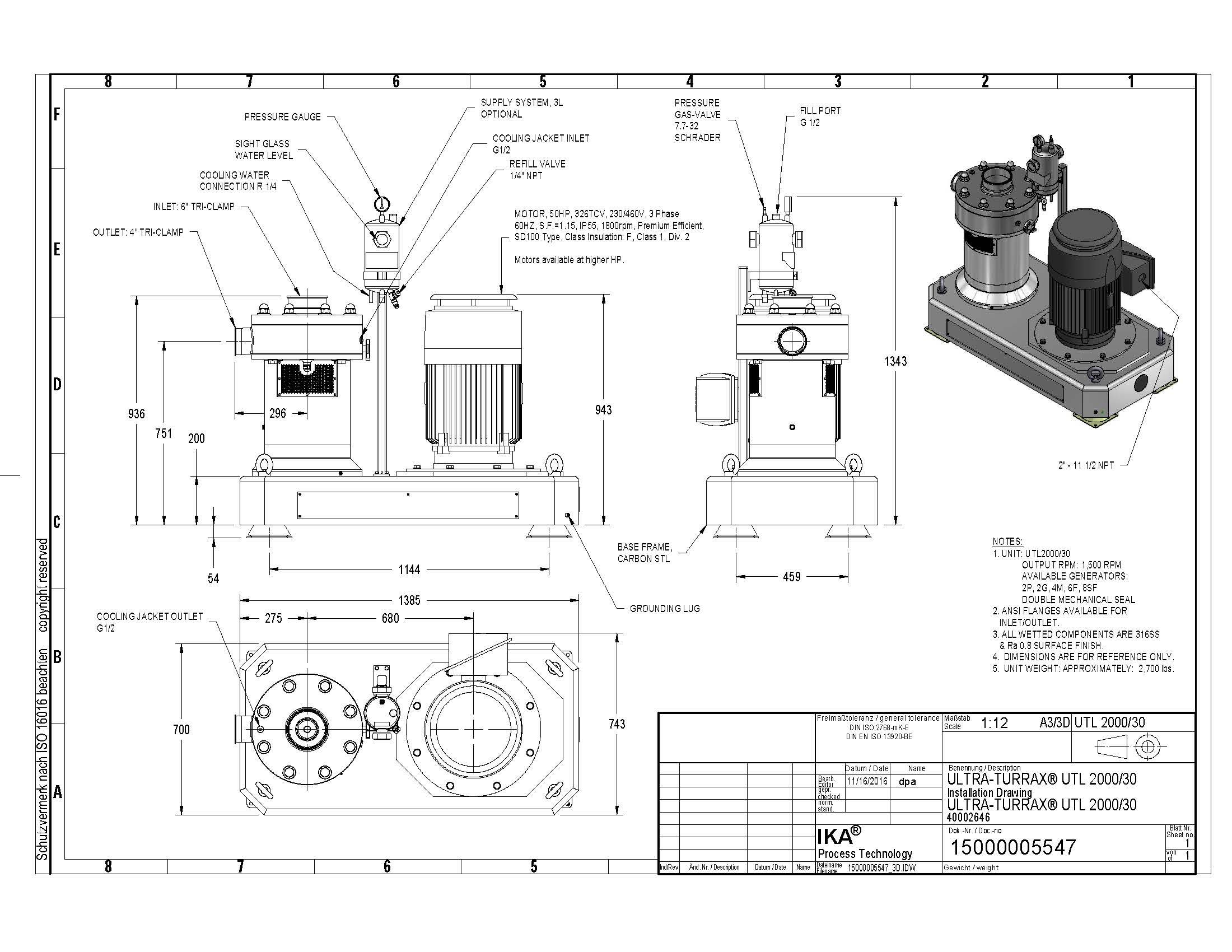

| ULTRA-TURRAX® UTL 2000/30 | 175 | 50 | 1500 | |
 |

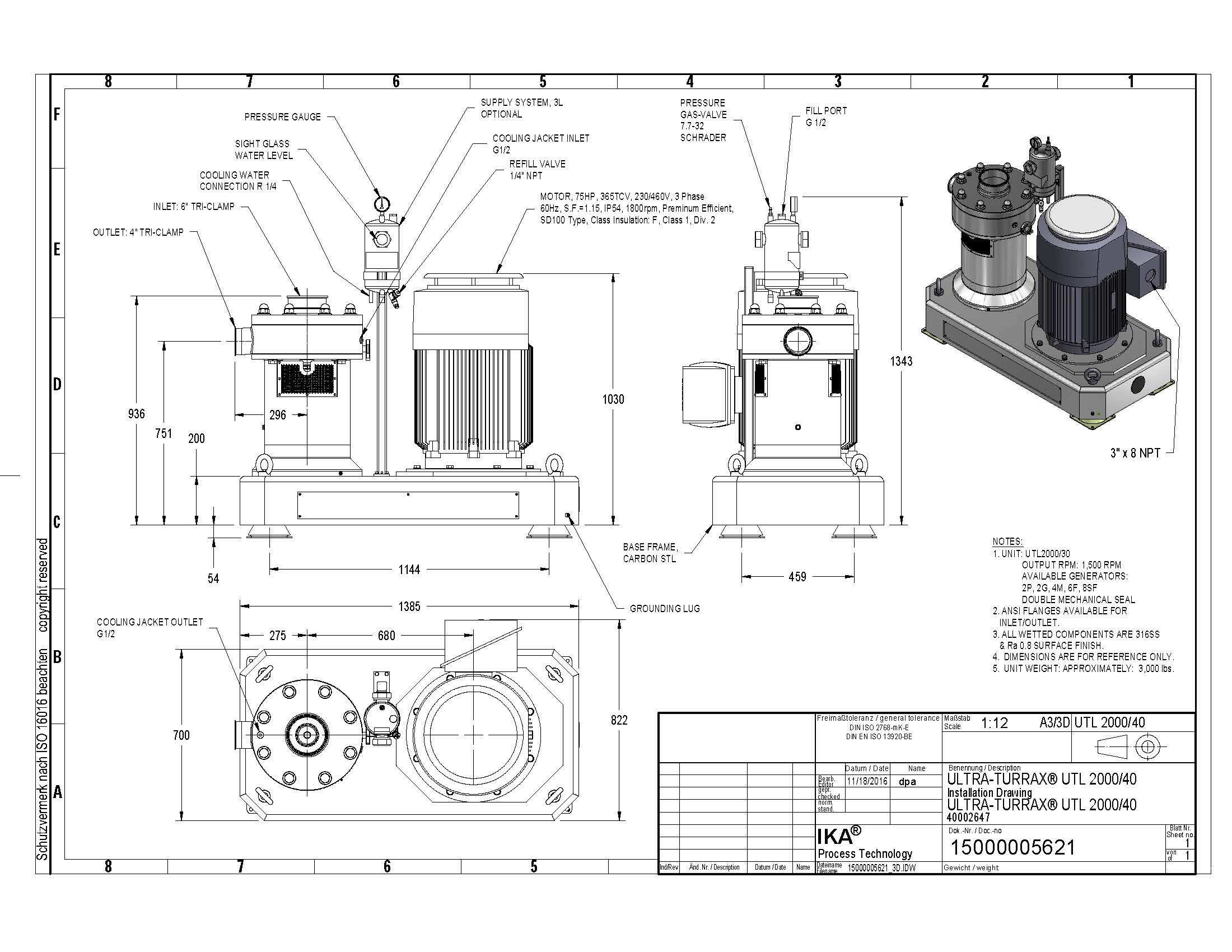

| ULTRA-TURRAX® UTL 2000/40 | 350 | 75 | 1500 | |
 |

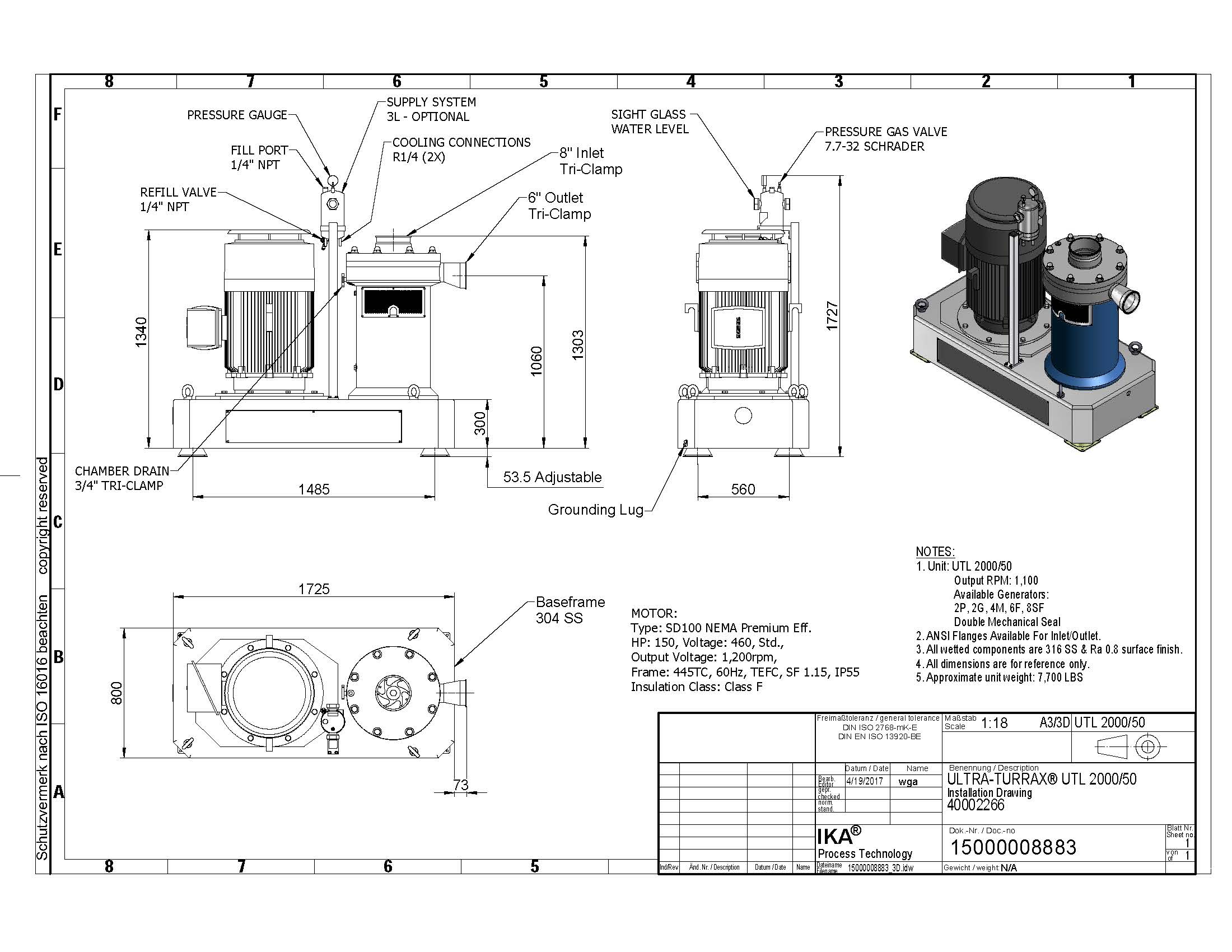

| ULTRA-TURRAX® UTL 2000/50 | 550 | 150 | 1100 | |
 |
