| Flow rate (max.) (GPM) |
Motor power (HP) |
Rotor rotational speed (rpm) |
Data Sheet | Drawing | |
|---|---|---|---|---|---|

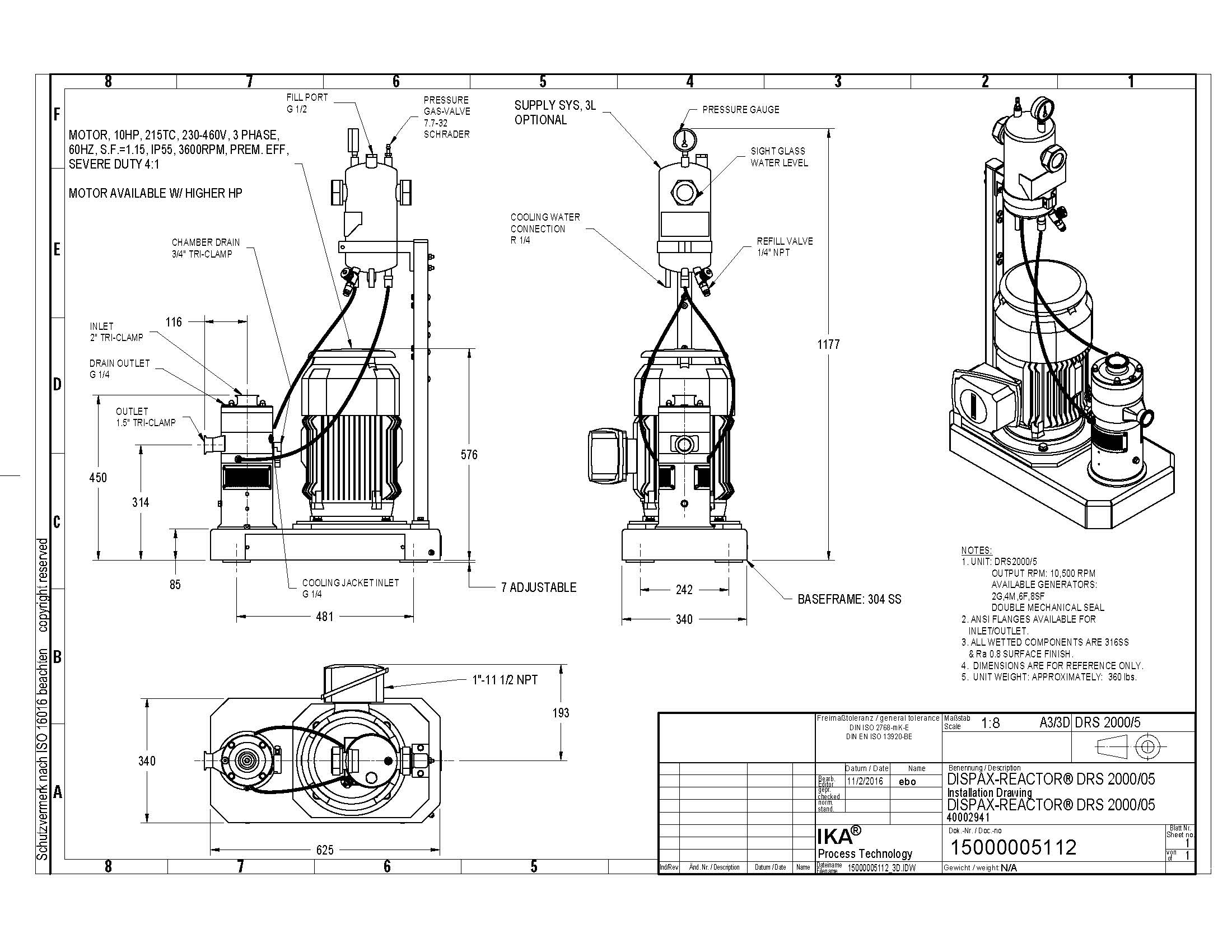

| DISPAX-REACTOR® DRS 2000/05 | 3 | 7.5 | 10500 |  |
 |

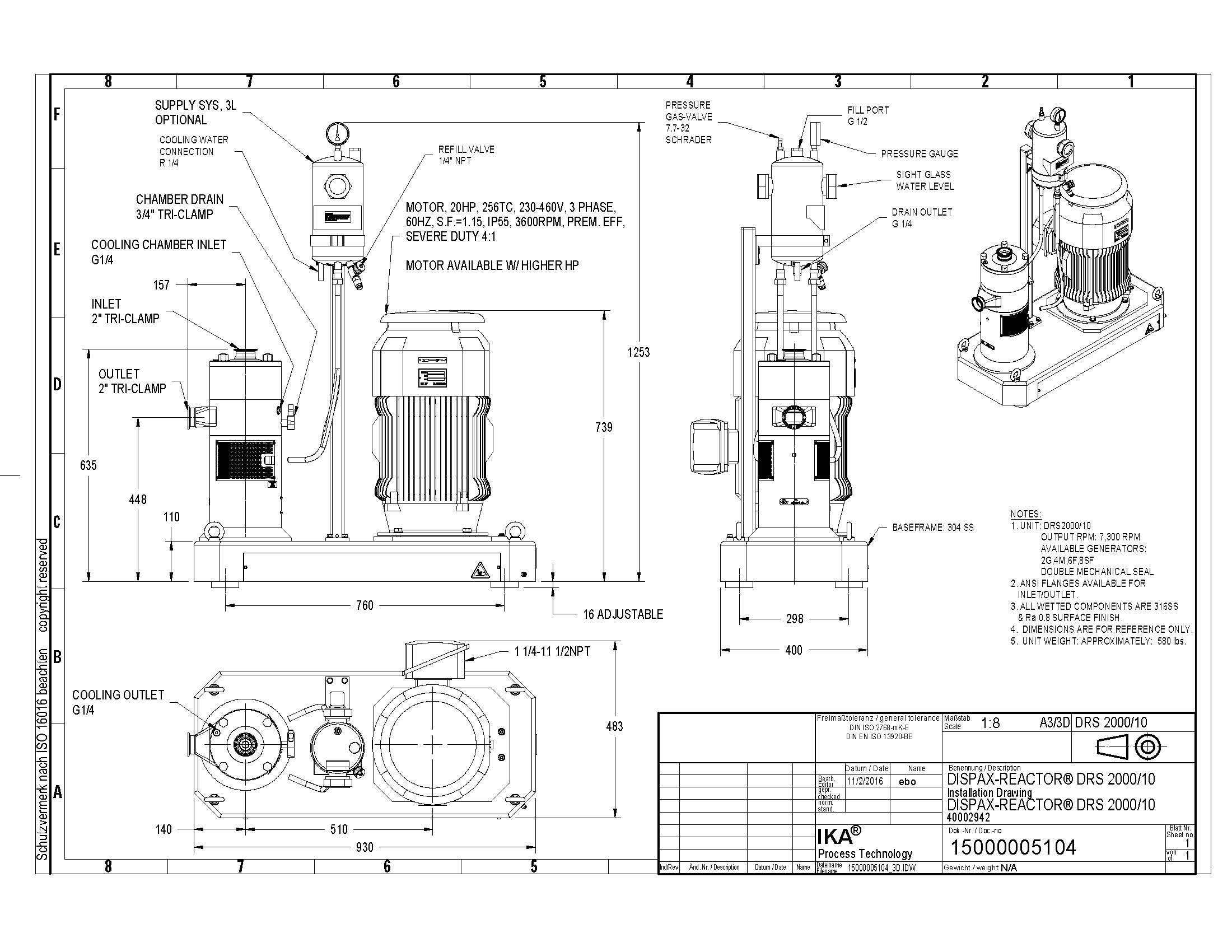

| DISPAX-REACTOR® DRS 2000/10 | 10 | 20 | 7300 | |
 |

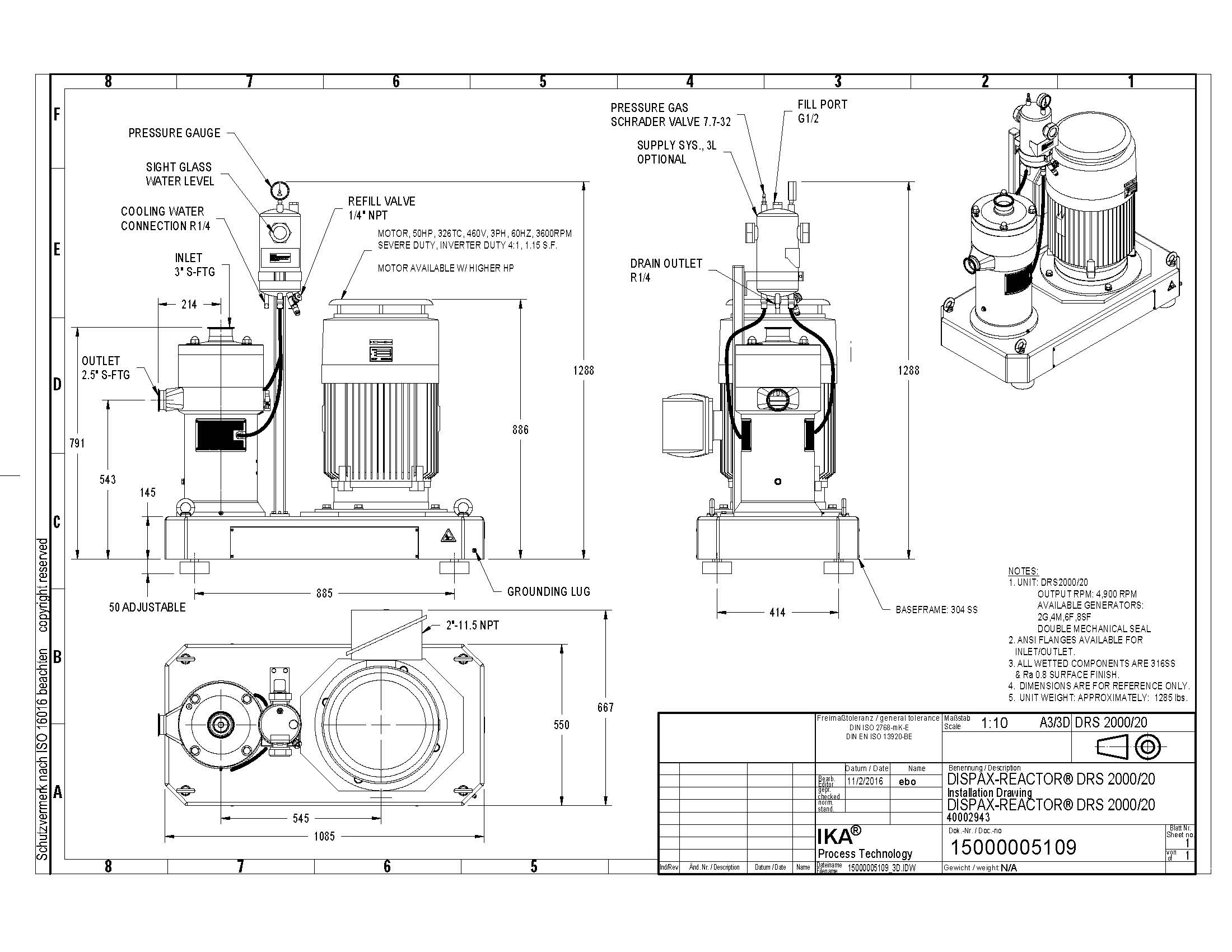

| DISPAX-REACTOR® DRS 2000/20 | 30 | 50 | 4900 | |
 |

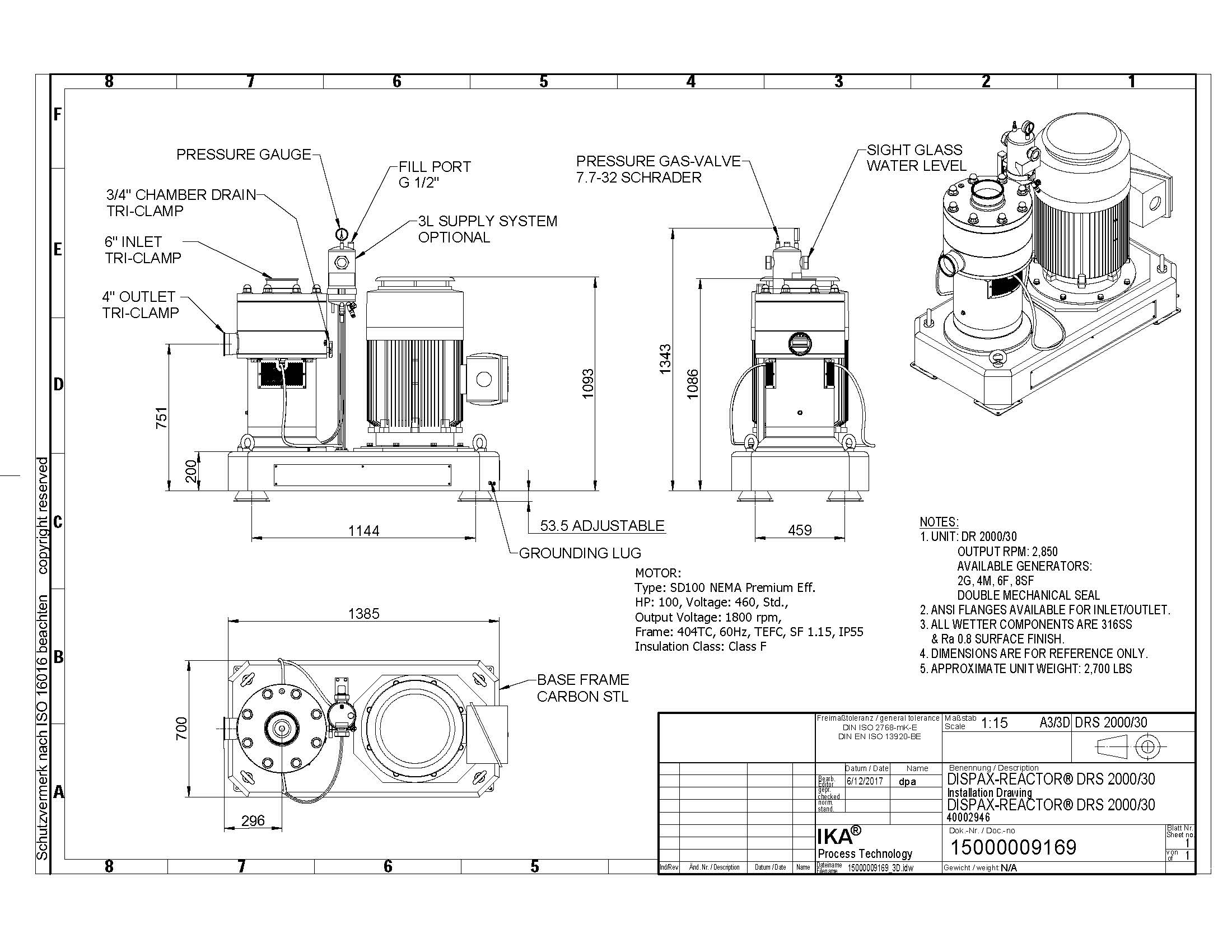

| DISPAX-REACTOR® DRS 2000/30 | 90 | 100 | 2850 | |
 |

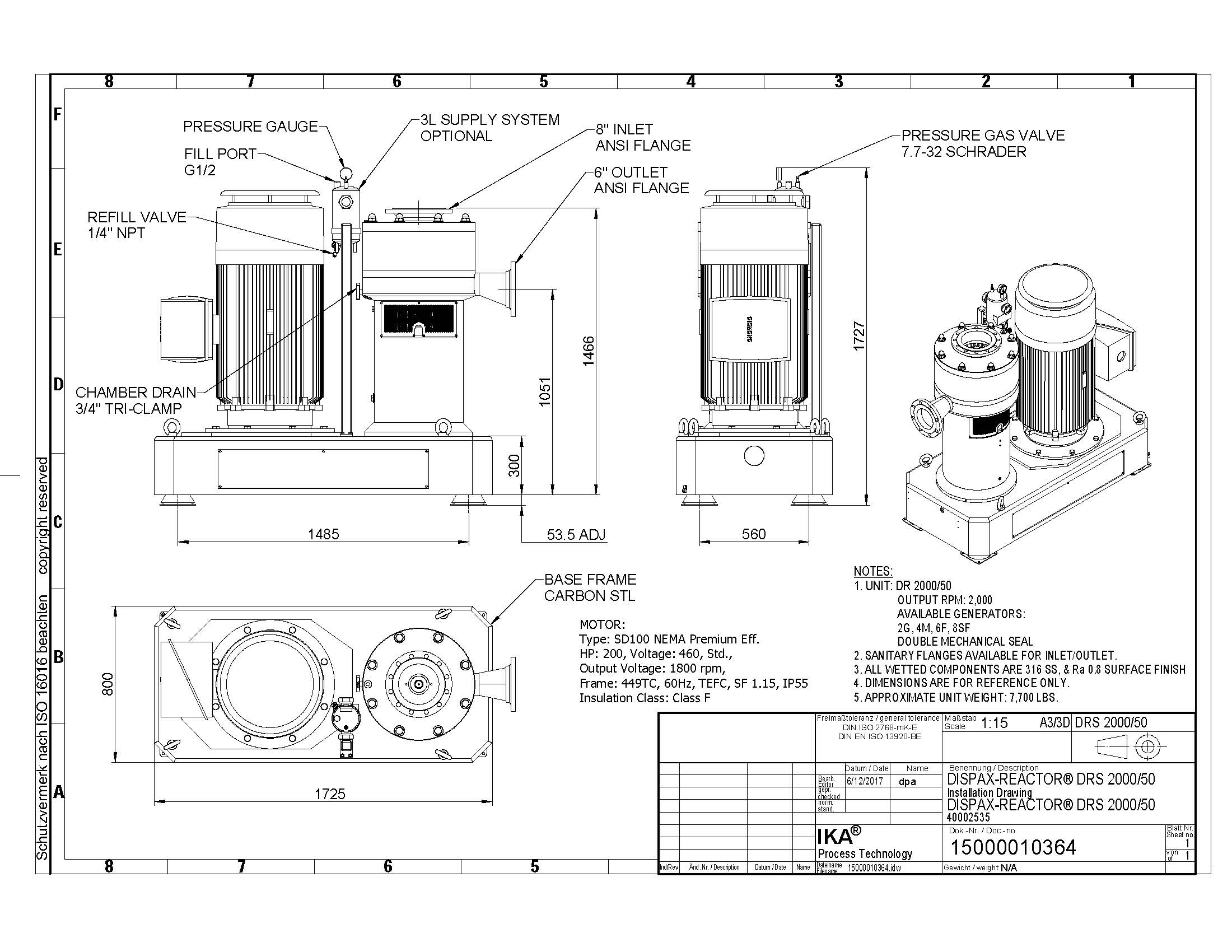

| DISPAX-REACTOR® DRS 2000/50 | 175 | 200 | 2000 | |
 |
