| Batch size max. (H2O) (Gal) |
Process pressure (max.) (bar) |
Motor power, standard (HP) |
Tip speed (m/s) |
Data Sheet | Drawing | |
|---|---|---|---|---|---|---|

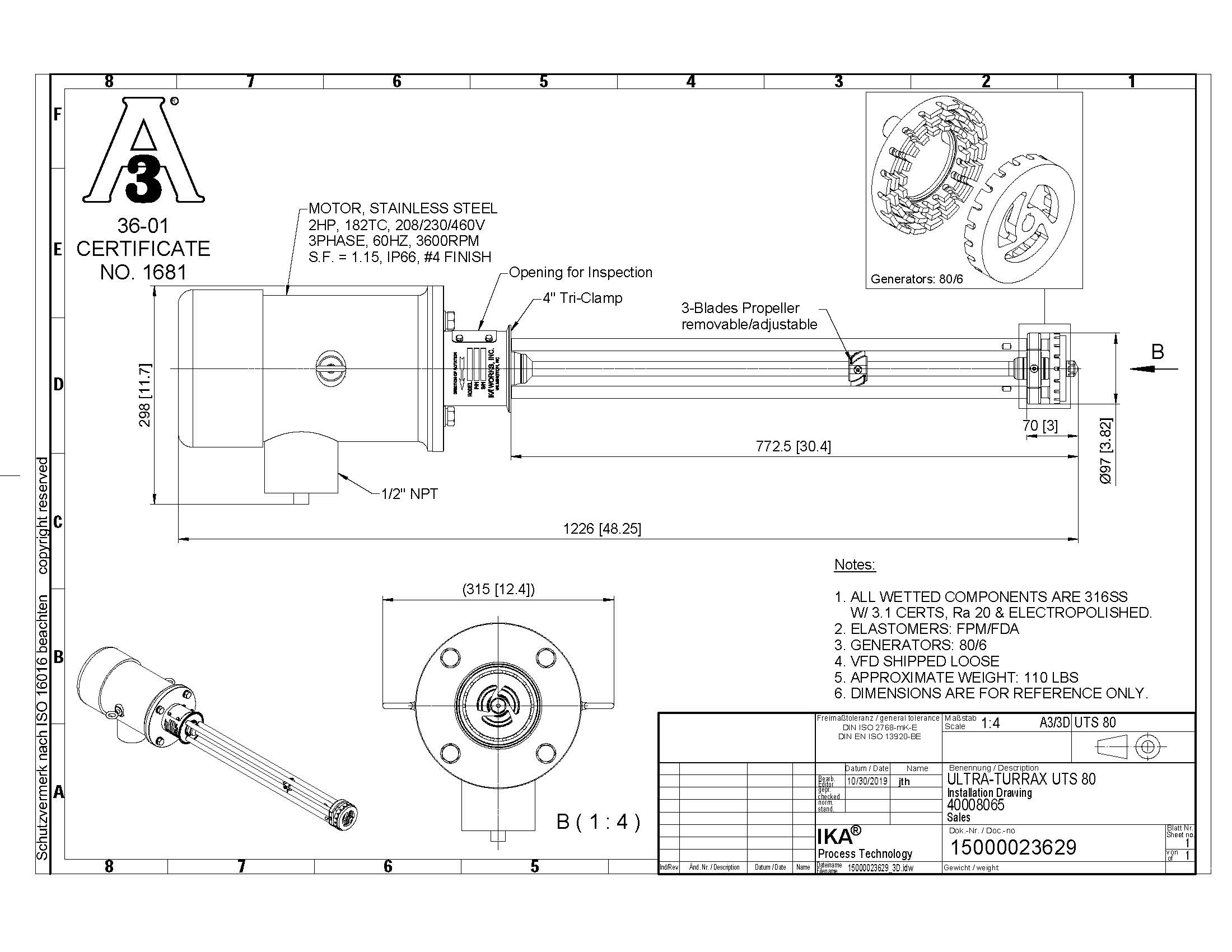

| UTS 80/KT | 25 | 2.5 | 3 | 12 |  |
 |
| UTS 80/KD | 25 | 16 | 3 | 12 | |
 |

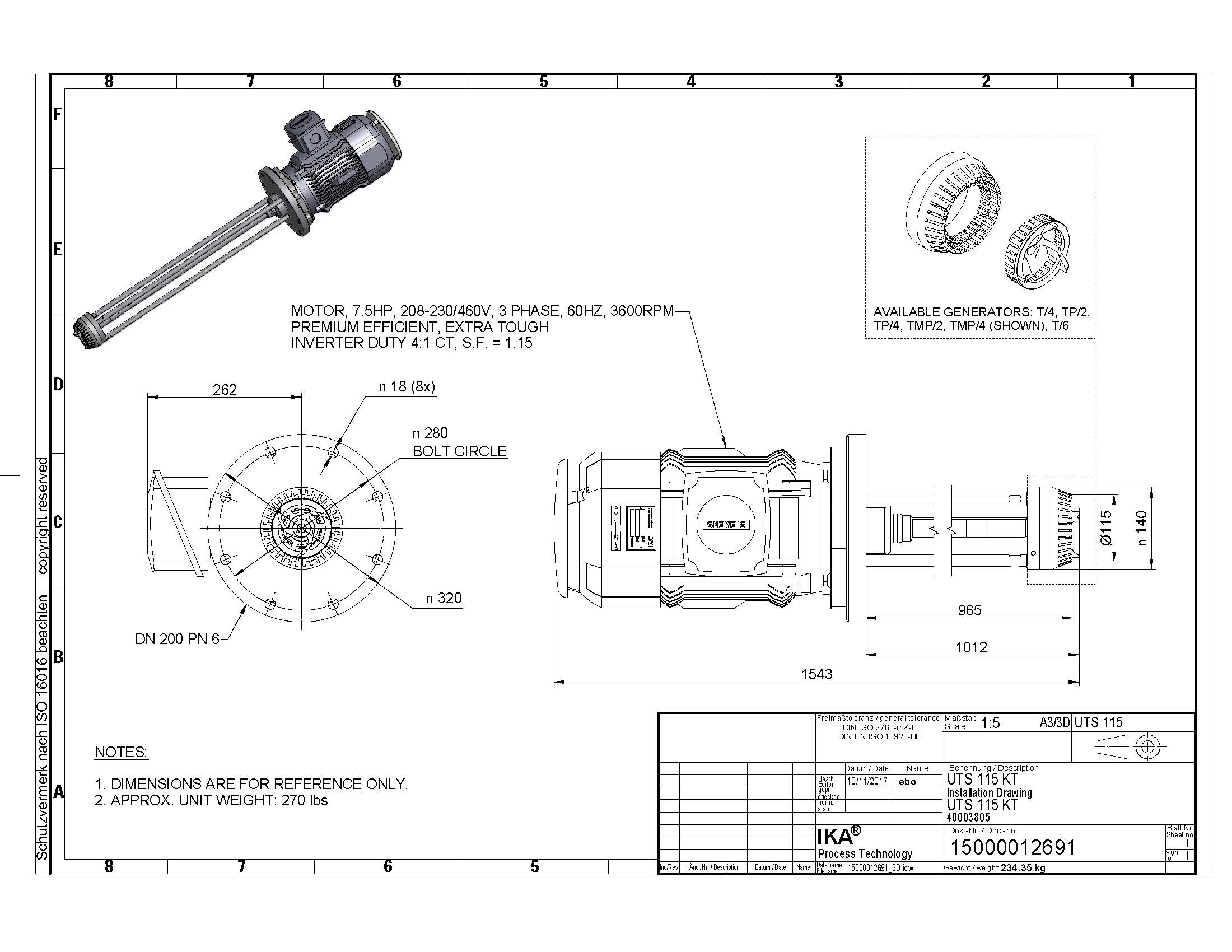

| UTS 115/KT | 130 | 2.5 | 7.5 | 18 | |
 |
| UTS 115KD | 130 | 16 | 7.5 | 18 | |
 |

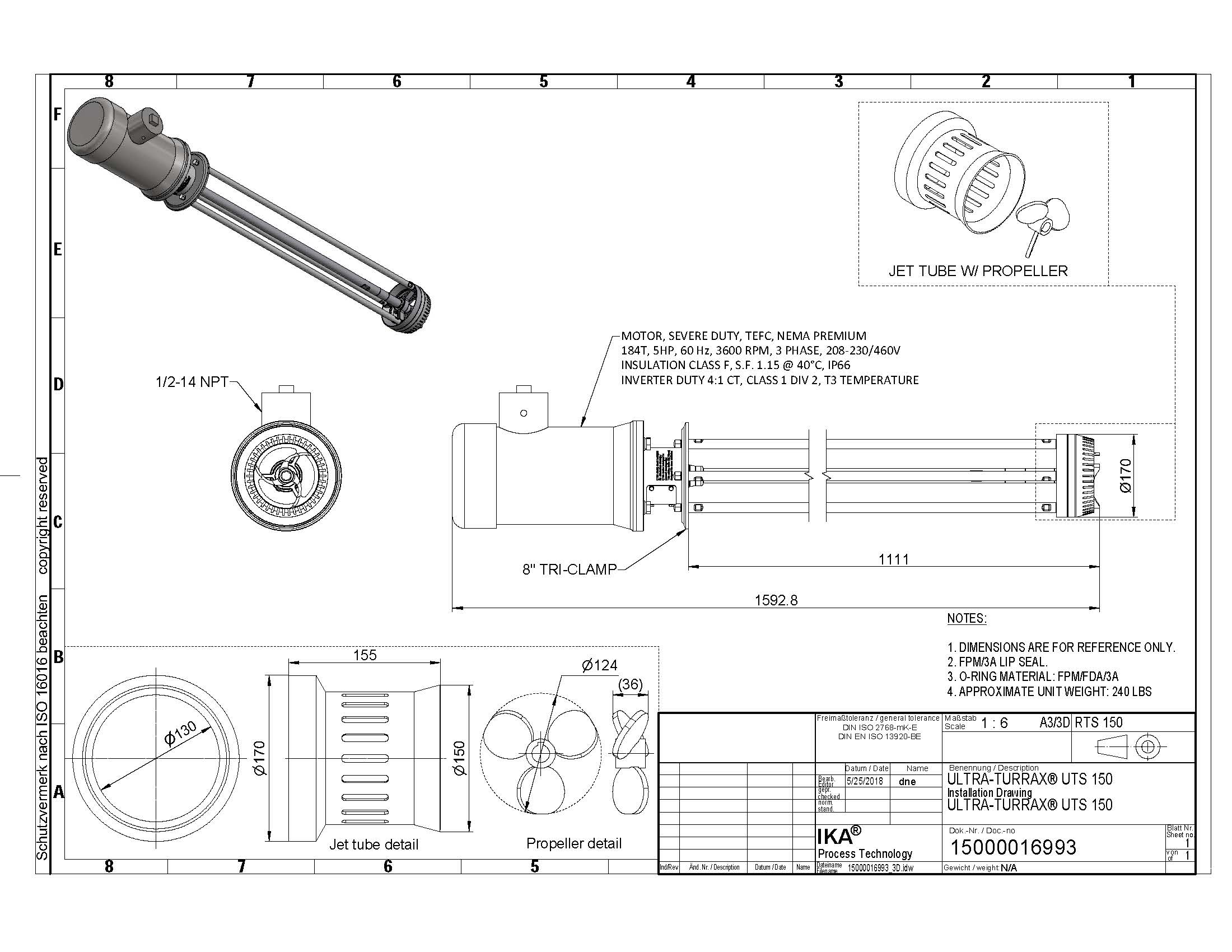

| UTS 150/KT | 450 | 2.5 | 15 | 25 | |
 |
| UTS 150/KD | 450 | 16 | 15 | 25 | |
 |
| UTS 220/KT | 660 | 2.5 | 20 | 18 | |
|
| UTS 220/KD | 660 | 16 | 20 | 18 | |
|
| UTS 280/KT | 900 | 2.5 | 30 | 24 | |
|
| UTS 280/KD | 900 | 16 | 30 | 24 | |
