| Batch size max. (H2O) (Gal) |
Process pressure (max.) (bar) |
Motor power, standard (HP) |
Tip speed (m/s) |
Data Sheet | Drawing | |
|---|---|---|---|---|---|---|

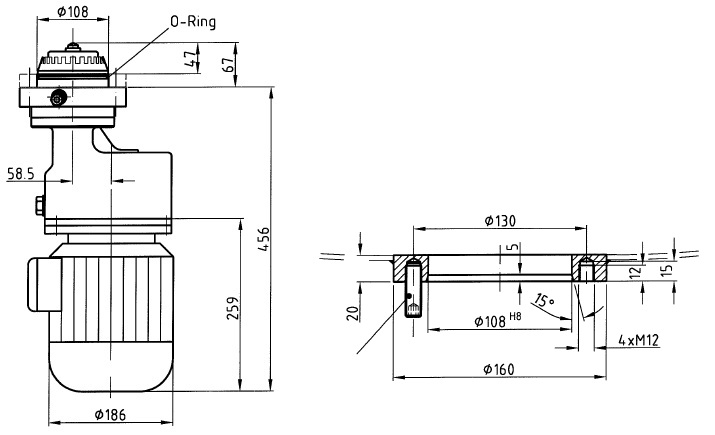

| UTE 60 | 20 | 10 | 3 | 27 |  |
 |

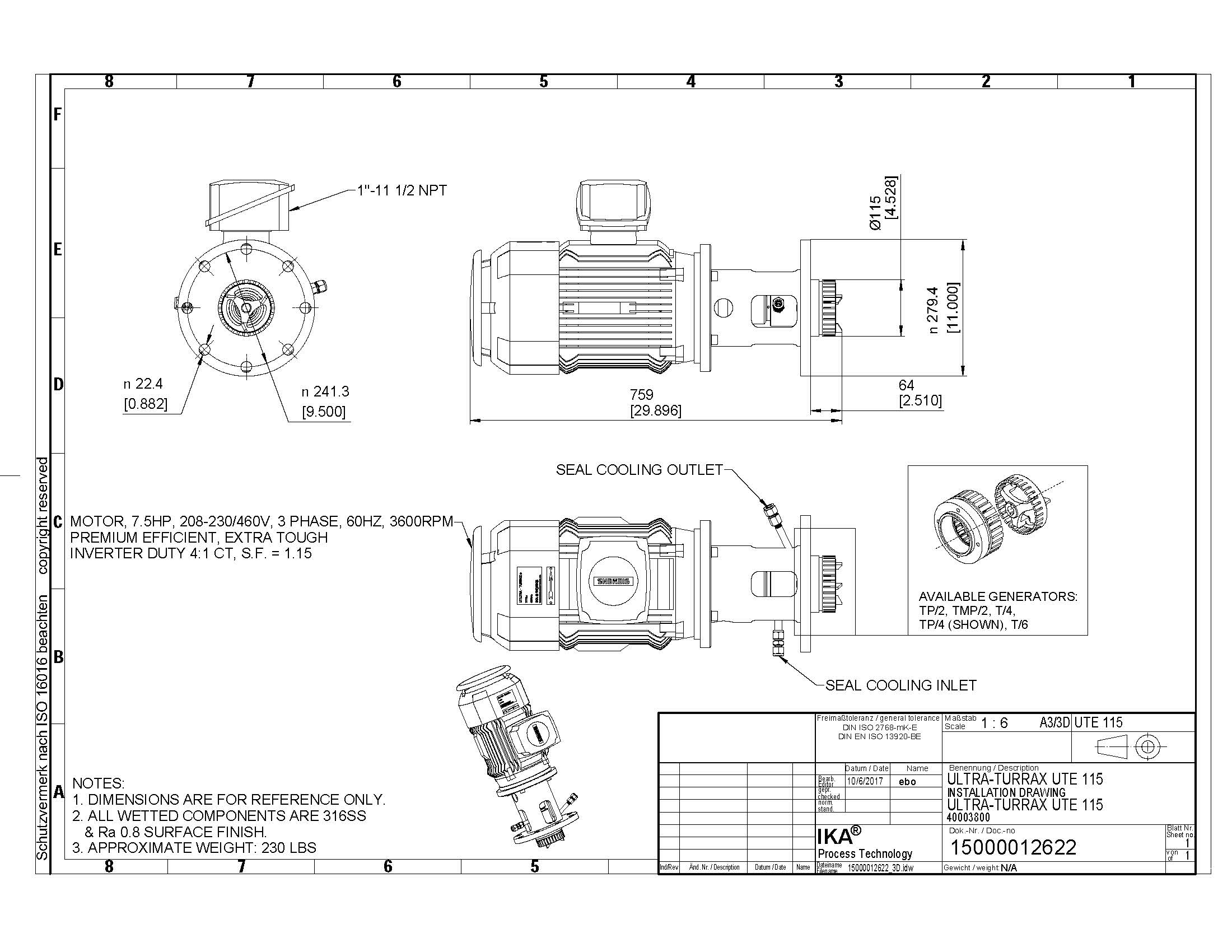

| UTE 115 | 100 | 16 | 7.5 | 18 | |
 |

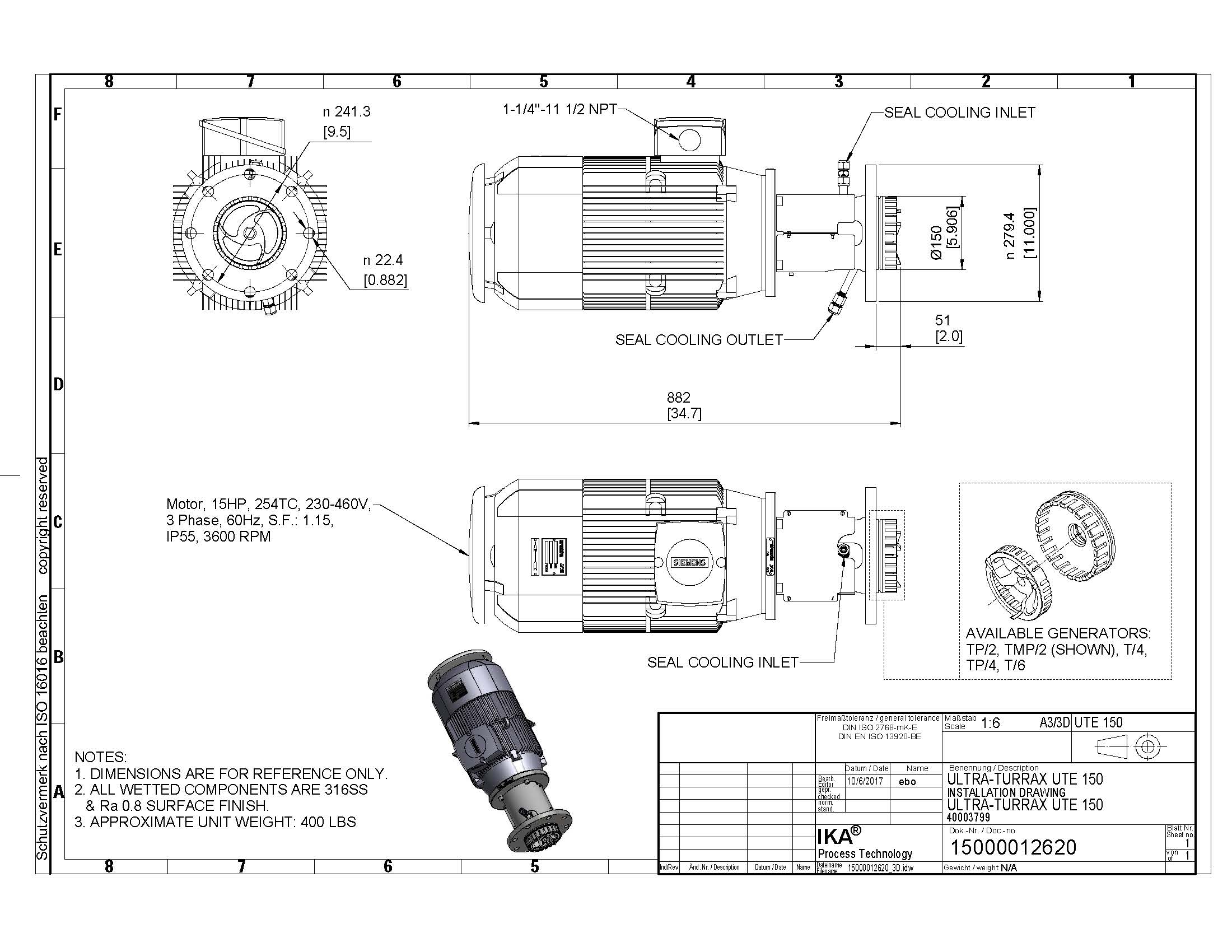

| UTE 150 | 200 | 16 | 15 | 25 | |
 |

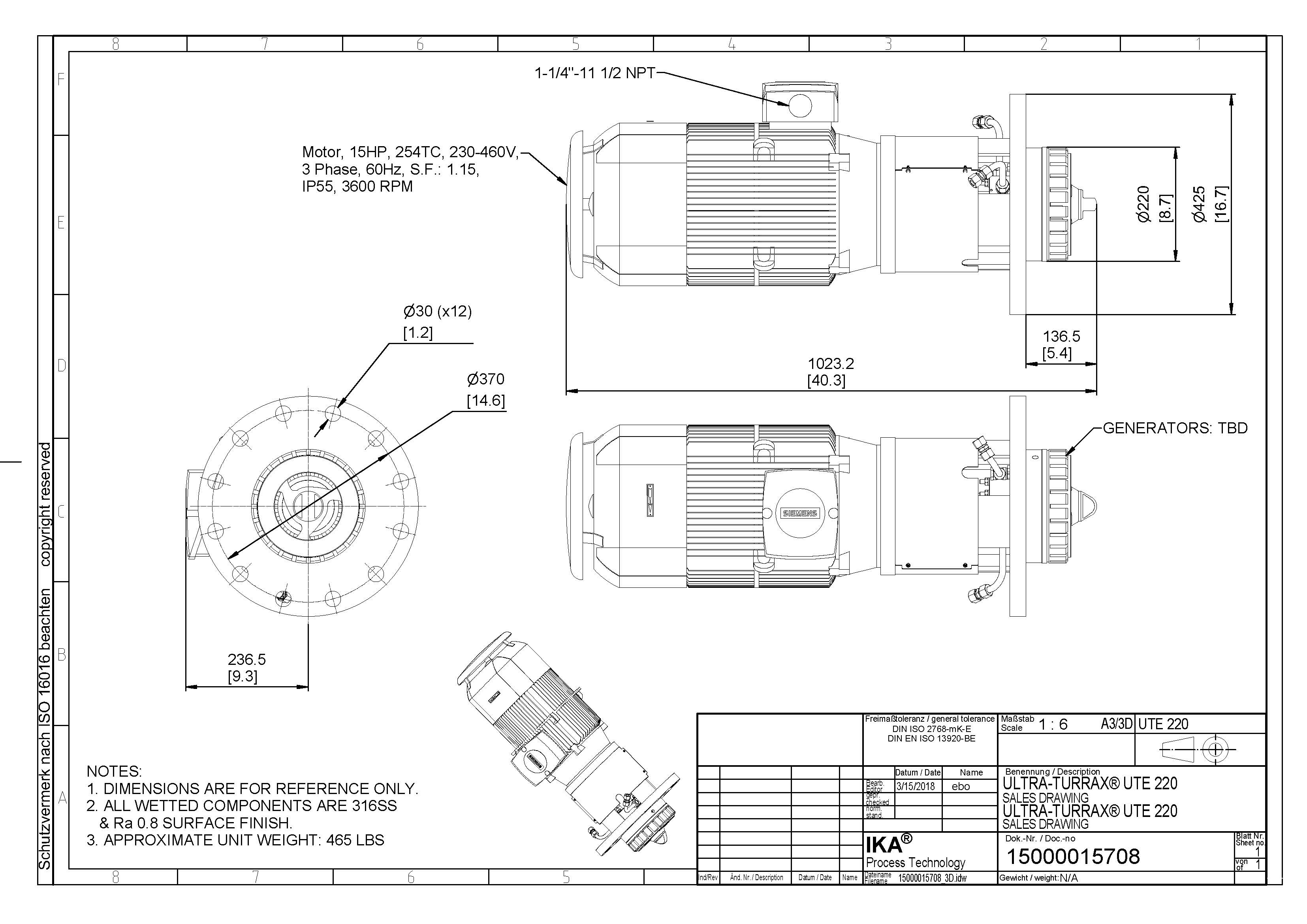

| UTE 220 | 300 | 16 | 15 | 18 | |
 |

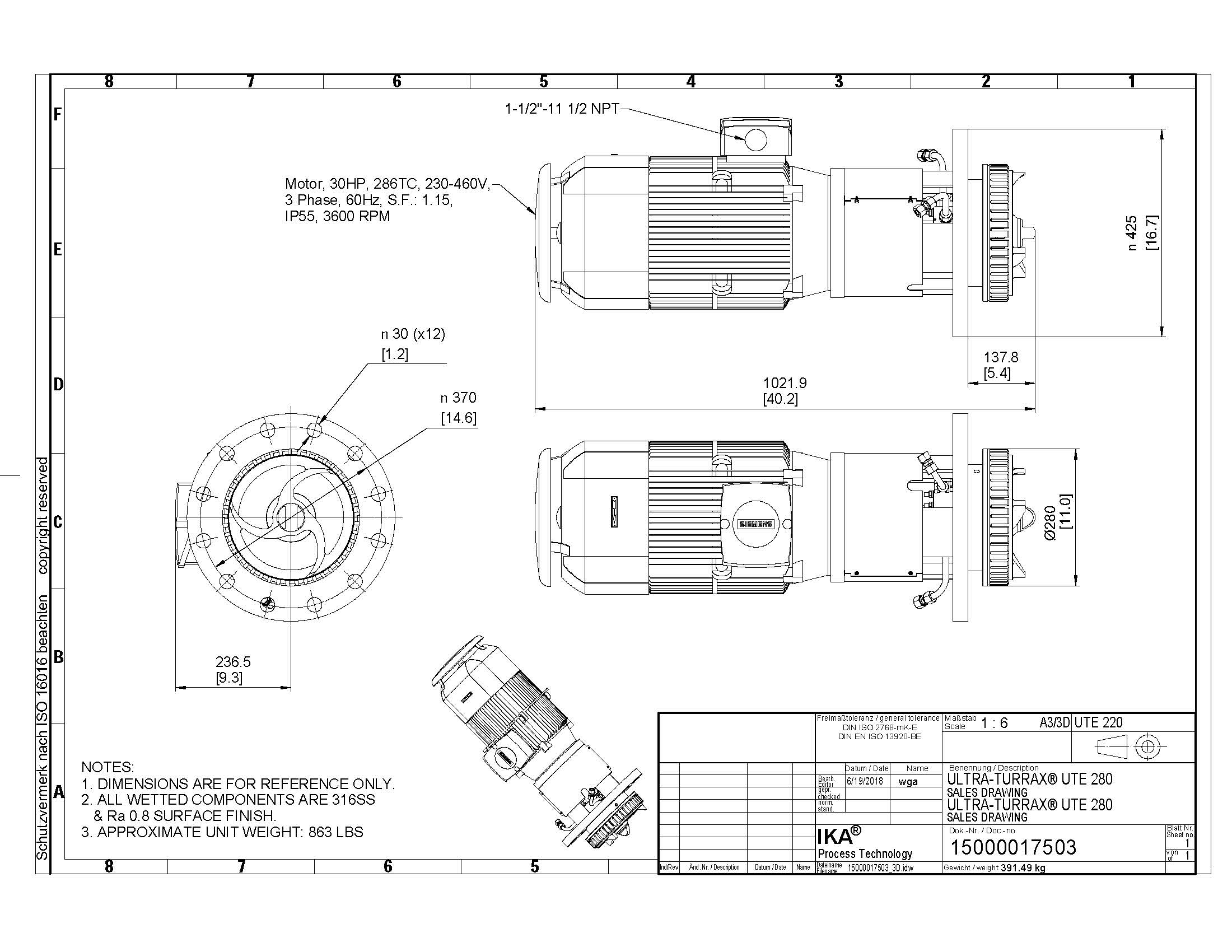

| UTE 280 | 660 | 16 | 30 | 24 | |
 |

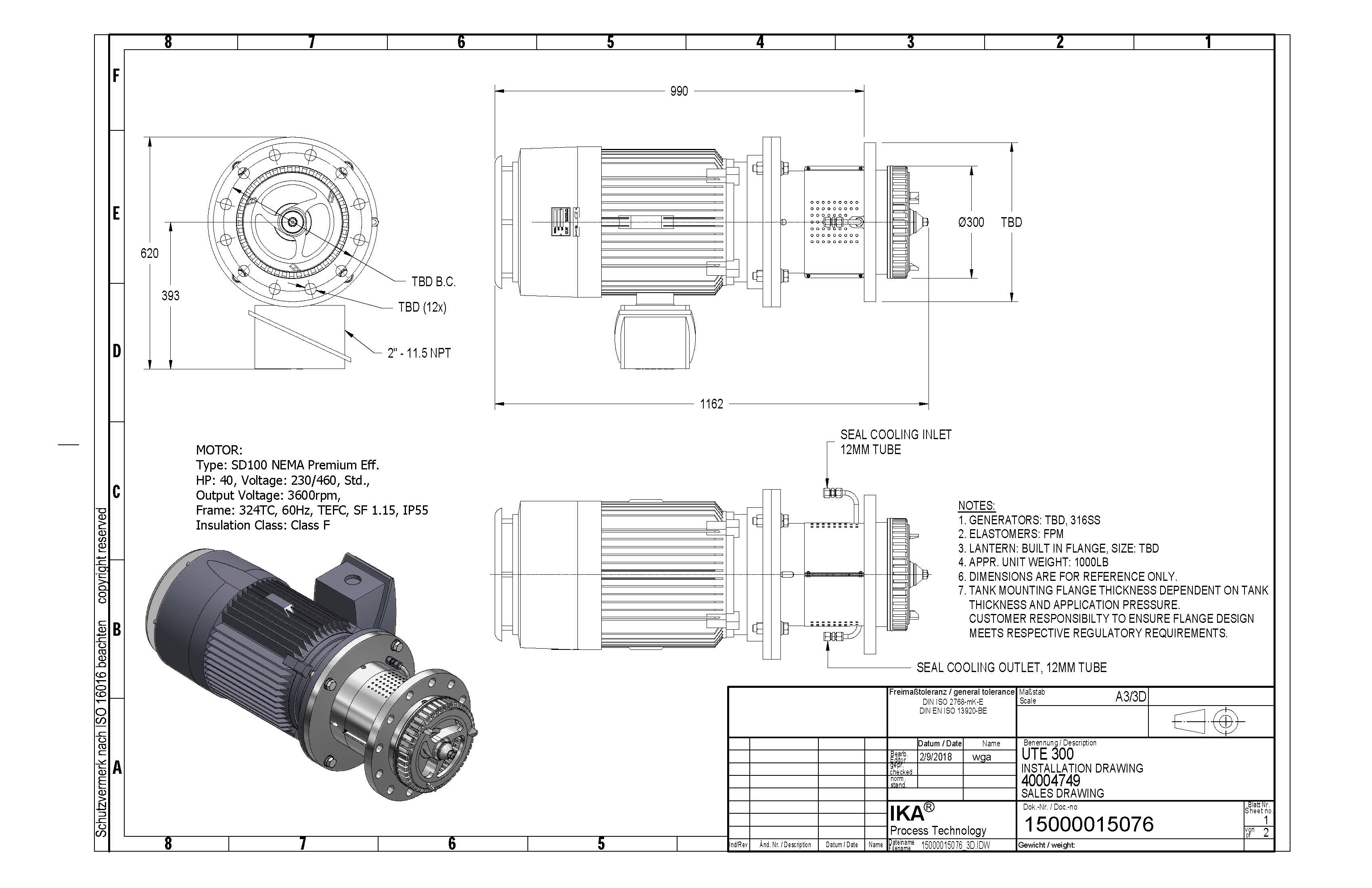

| UTE 300 | 1000 | 16 | 40 | 25 | |
 |

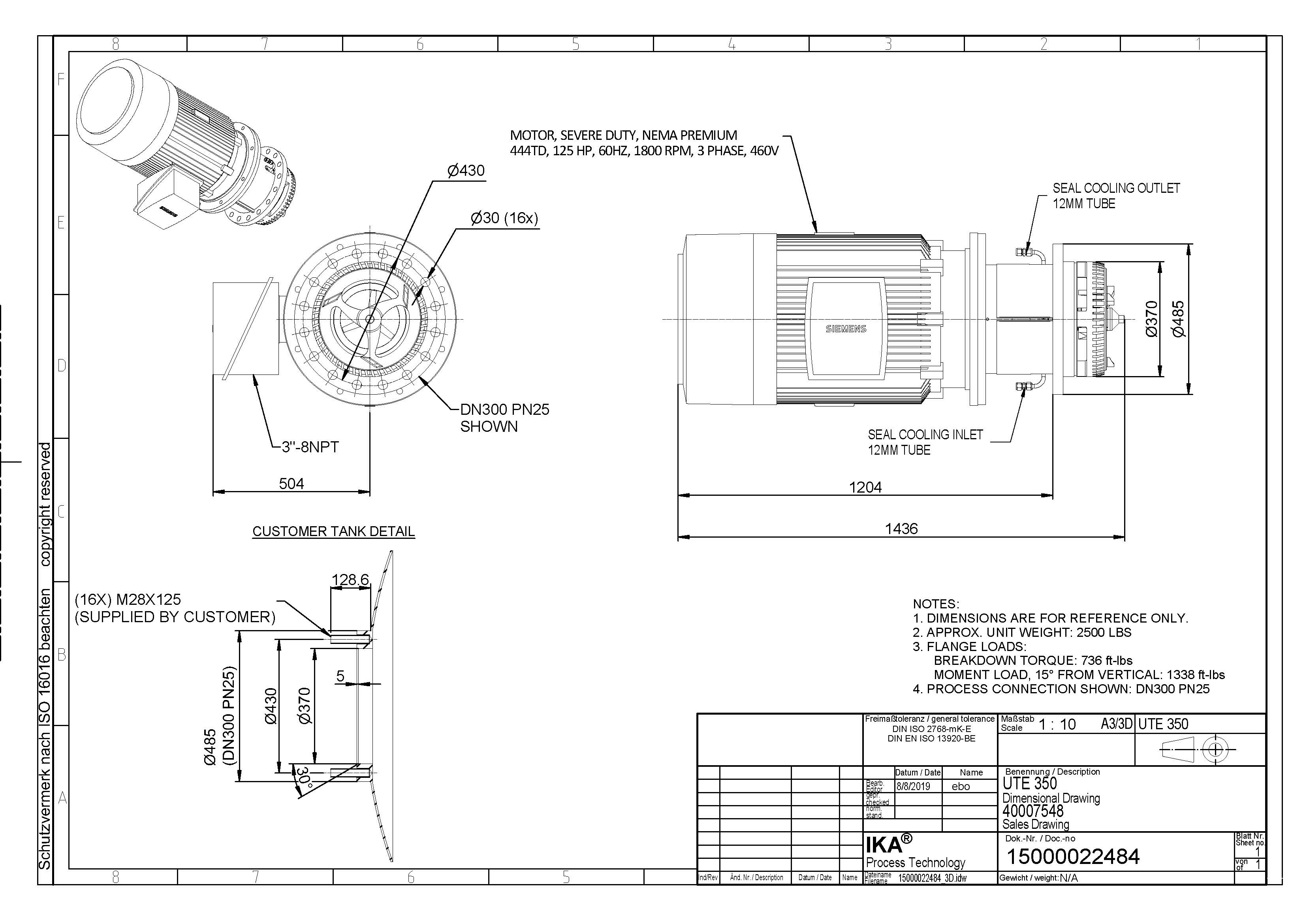

| UTE 350 | 2000 | 16 | 75 | 21 | |
 |

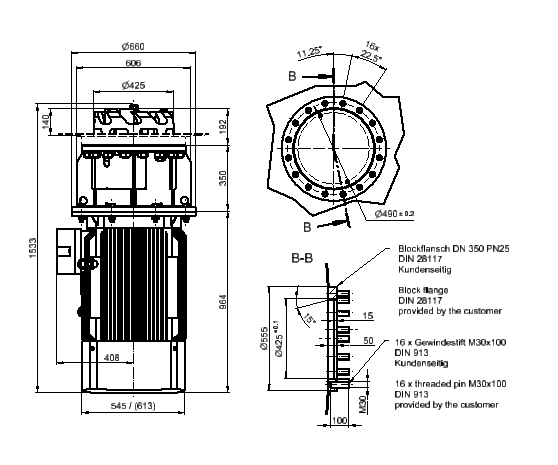

| UTE 400 | 3000 | 16 | 180 | |
 |
|
| UTE 450 | 5000 | 16 | 250 | 25 | |
 |
| UTE 600 | 10500 | 16 | 350 | |
