| Batch size max. (H2O) (Gal) |
Rotor rotational speed (rpm) |
Motor power, standard (HP) |
Tip speed (m/s) |
Data Sheet | Drawing | |
|---|---|---|---|---|---|---|

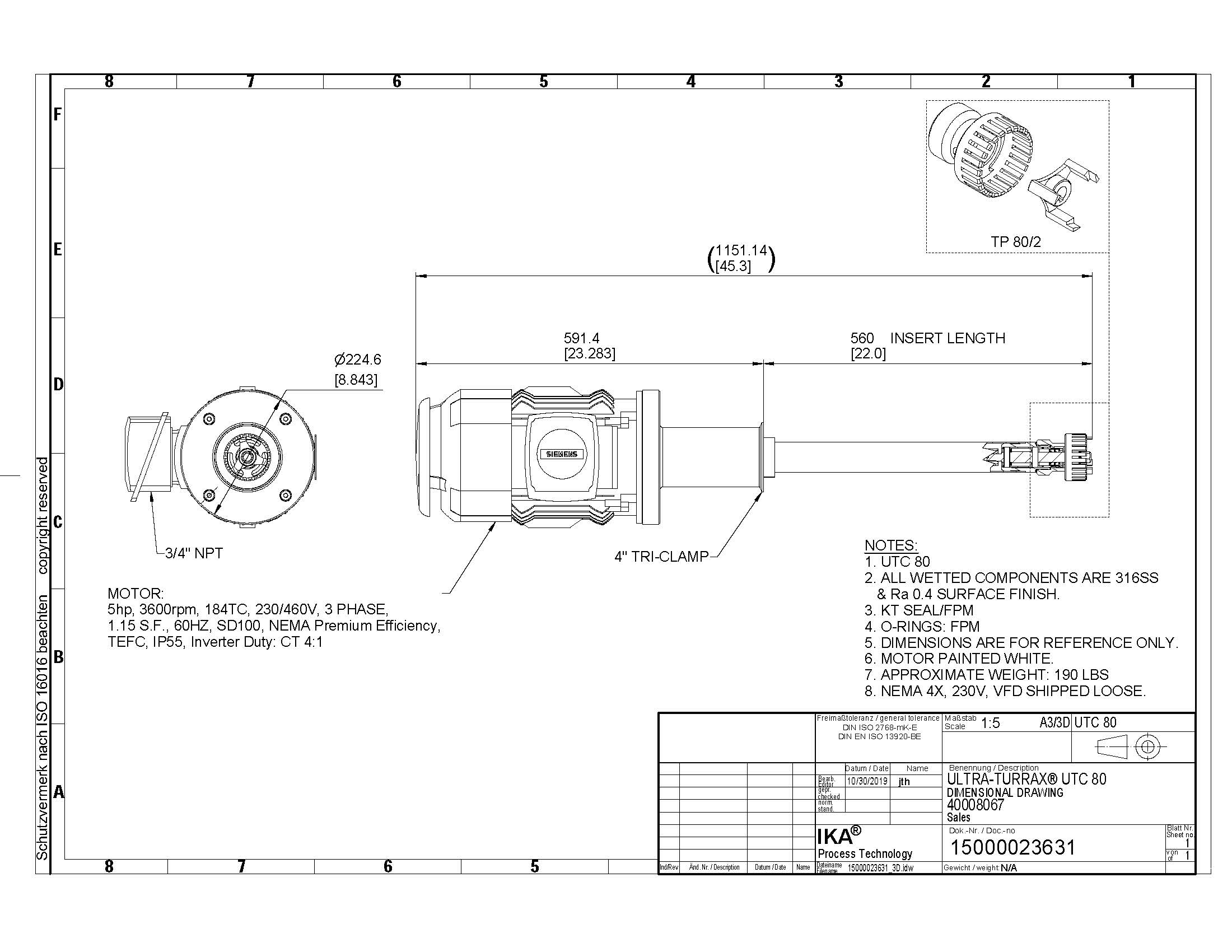

| UTC 80/KT | 40 | 3600 | 3 | 12 |  |
 |

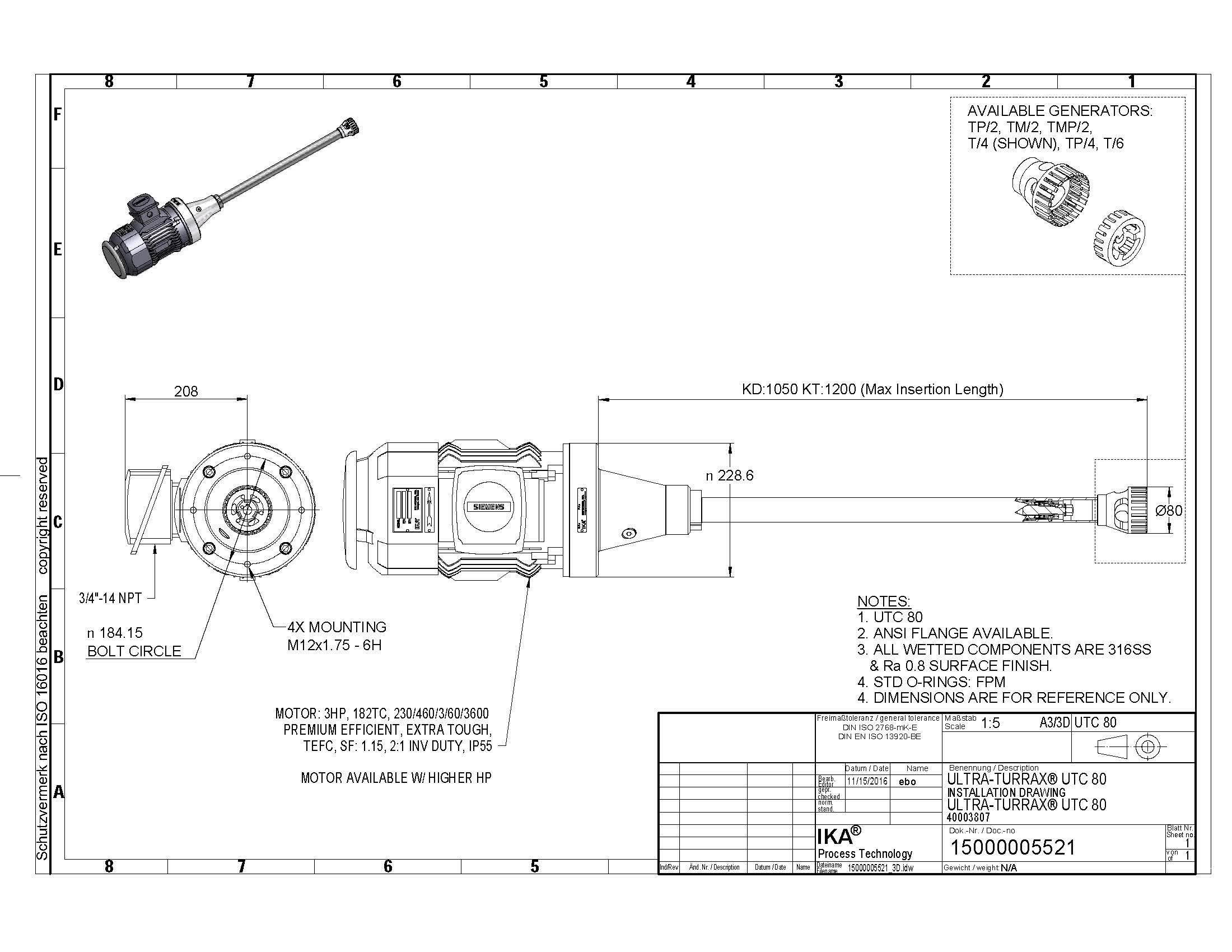

| UTC 80/KD | 40 | 3600 | 3 | 12 | |
 |

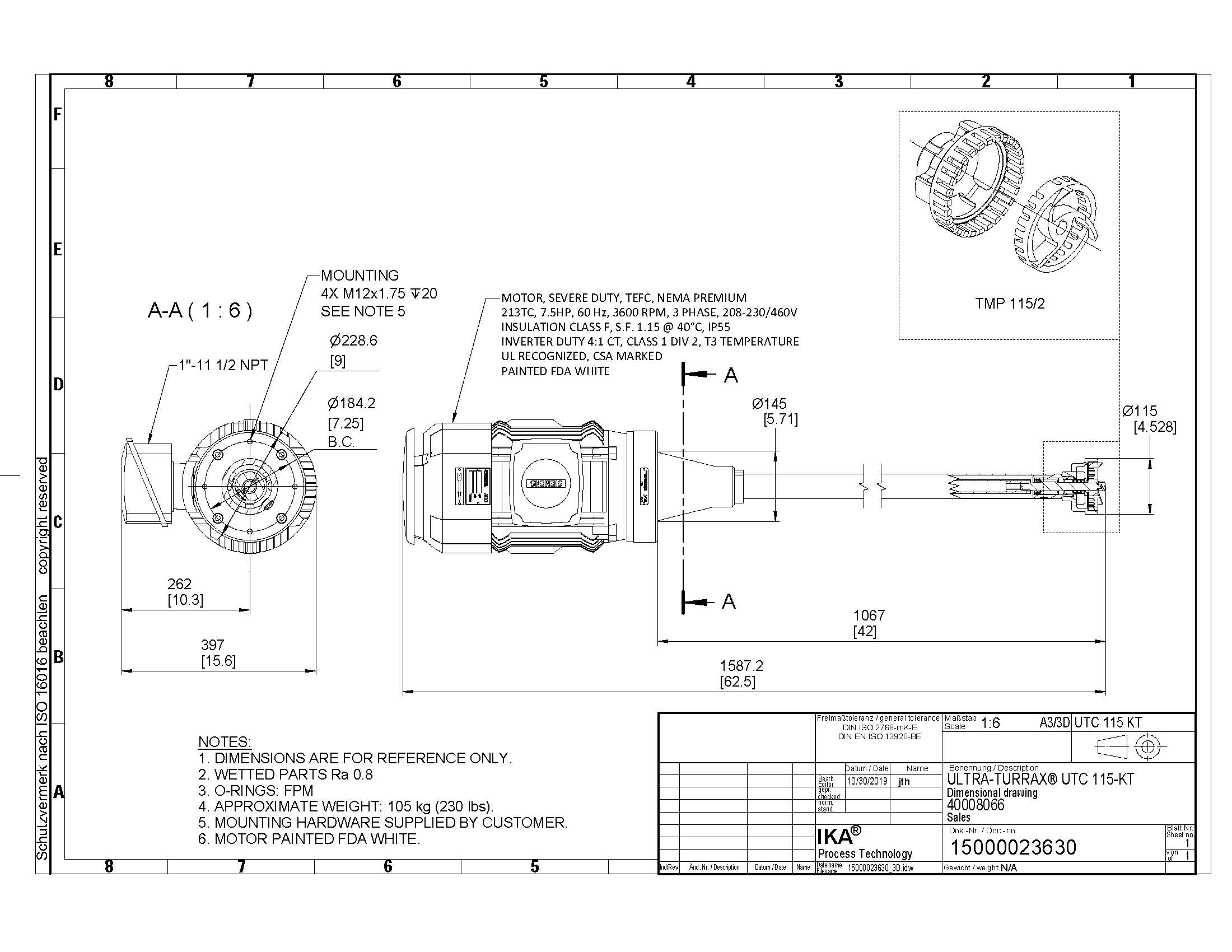

| UTC 115/KT | 130 | 3600 | 7.5 | 18 | |
 |

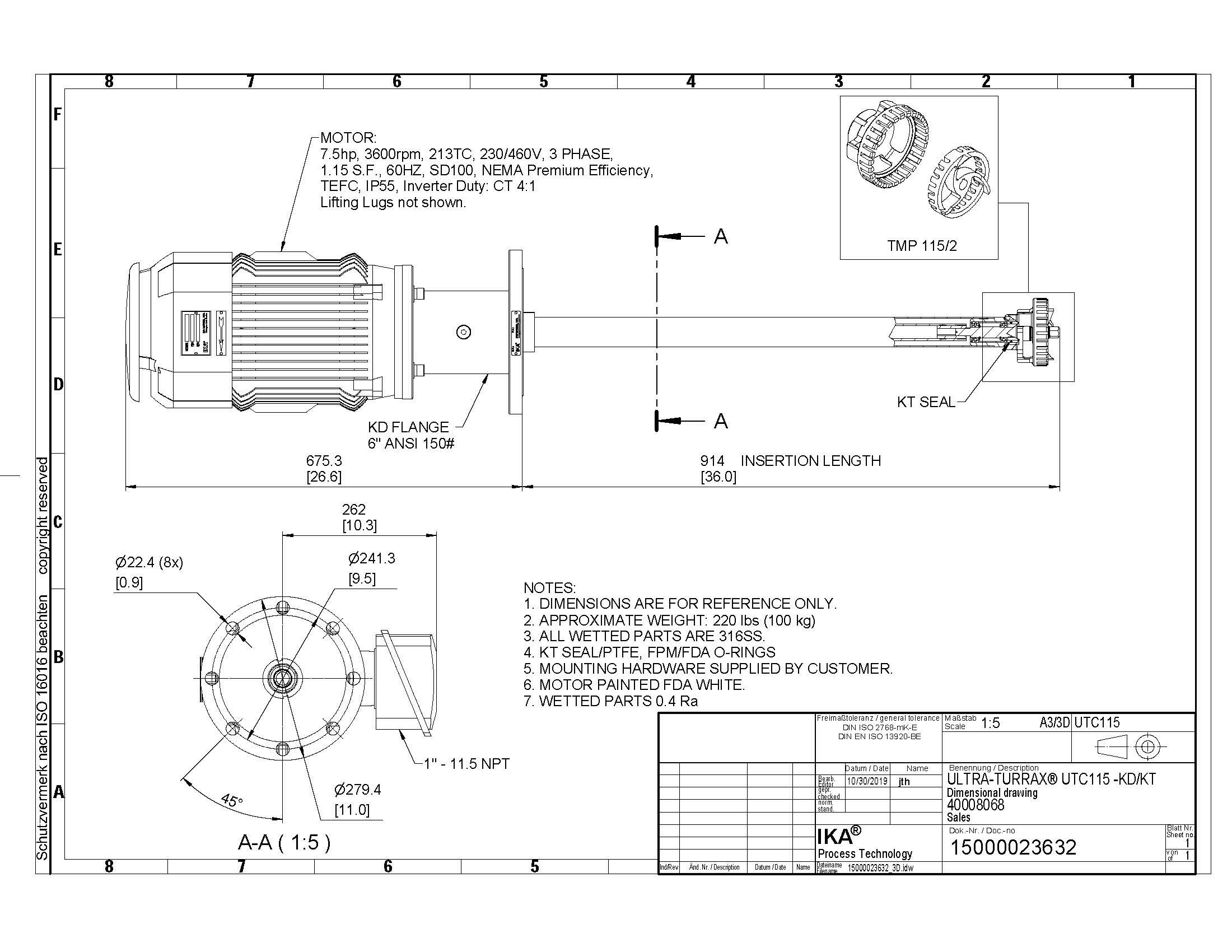

| UTC 115/KD | 130 | 3600 | 7.5 | 18 | |
 |

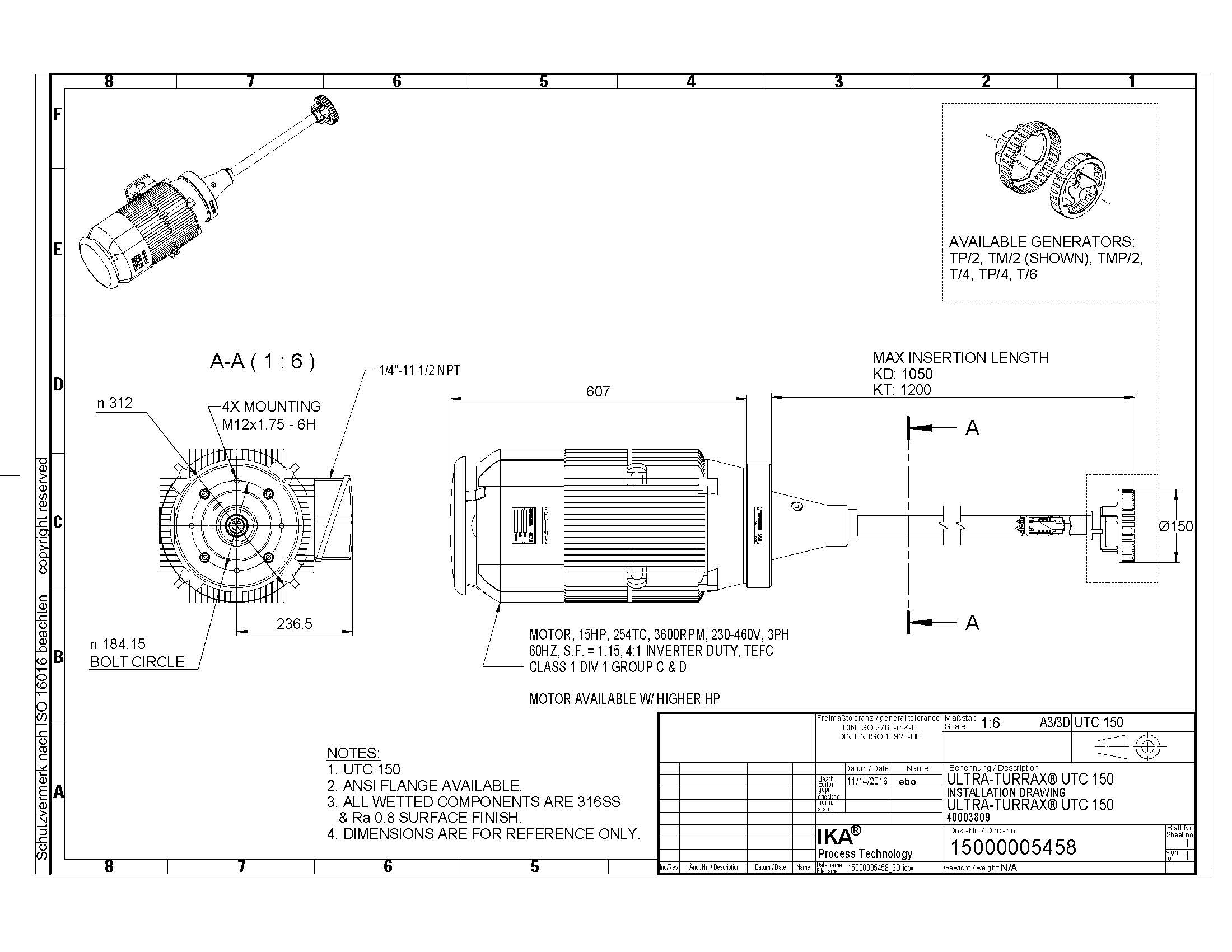

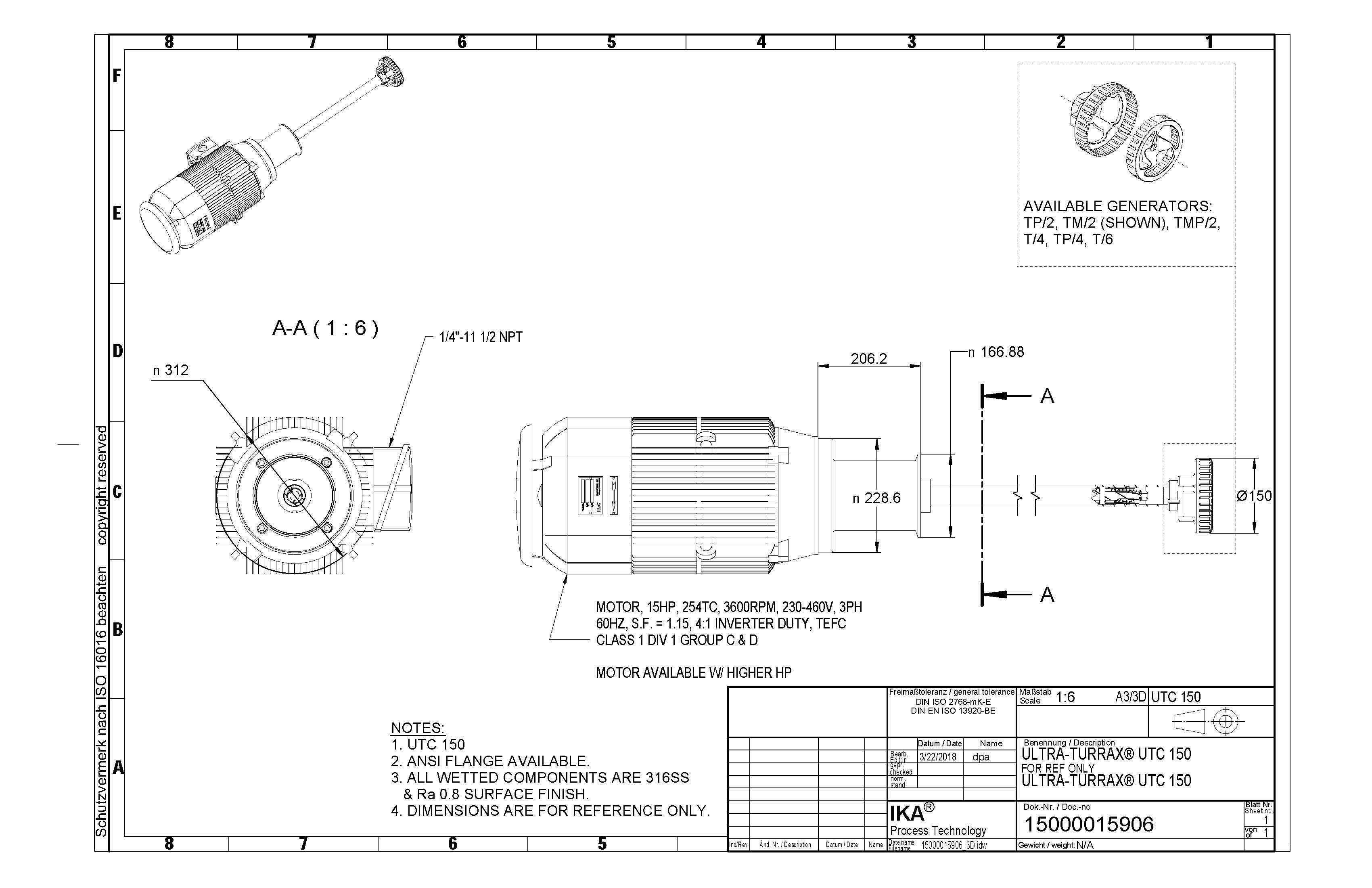

| UTC 150/KT | 450 | 3600 | 15 | 25 | |
 |
| UTC 150/KD | 450 | 3600 | 15 | 25 | |
 |

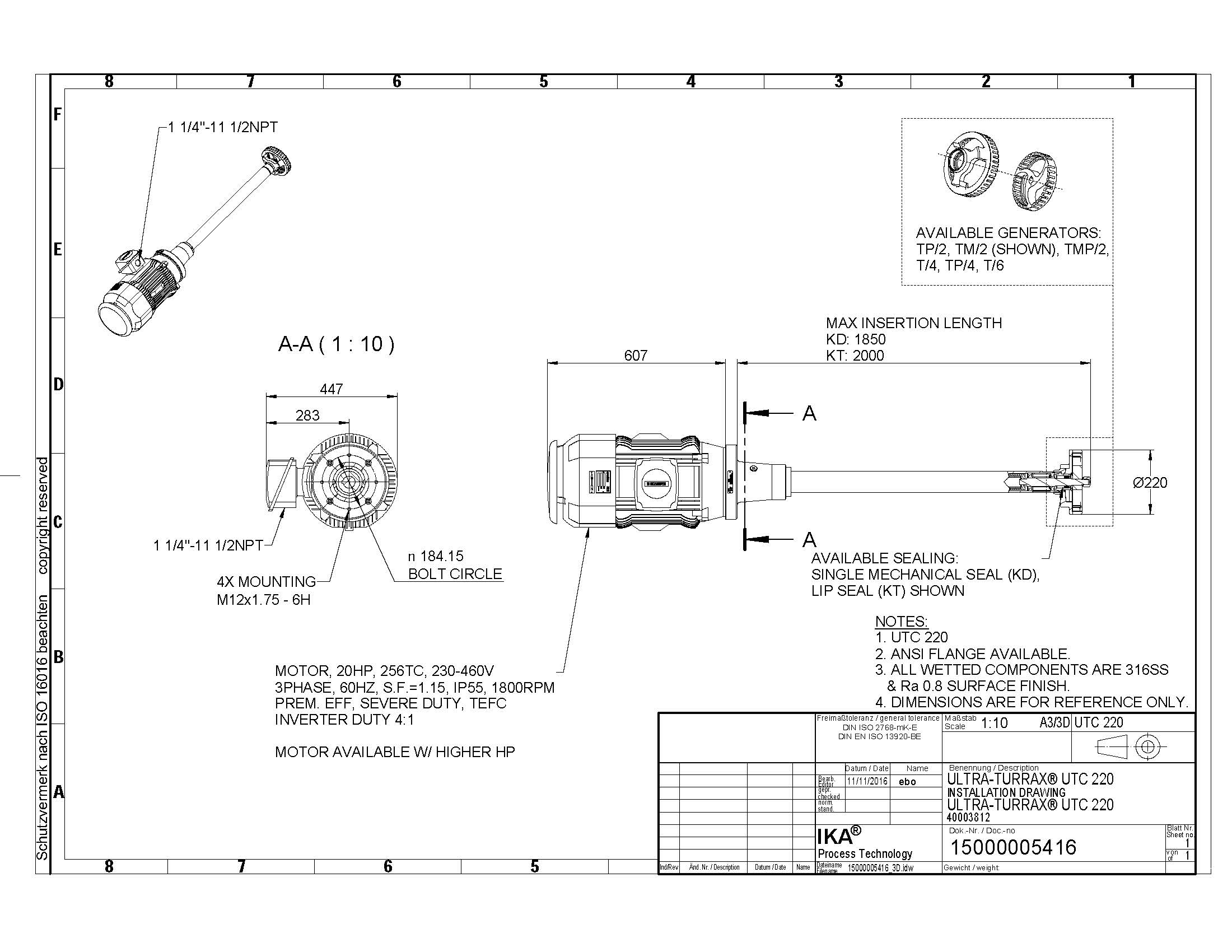

| UTC 220/KT | 660 | 1800 | 20 | 18 | |
 |

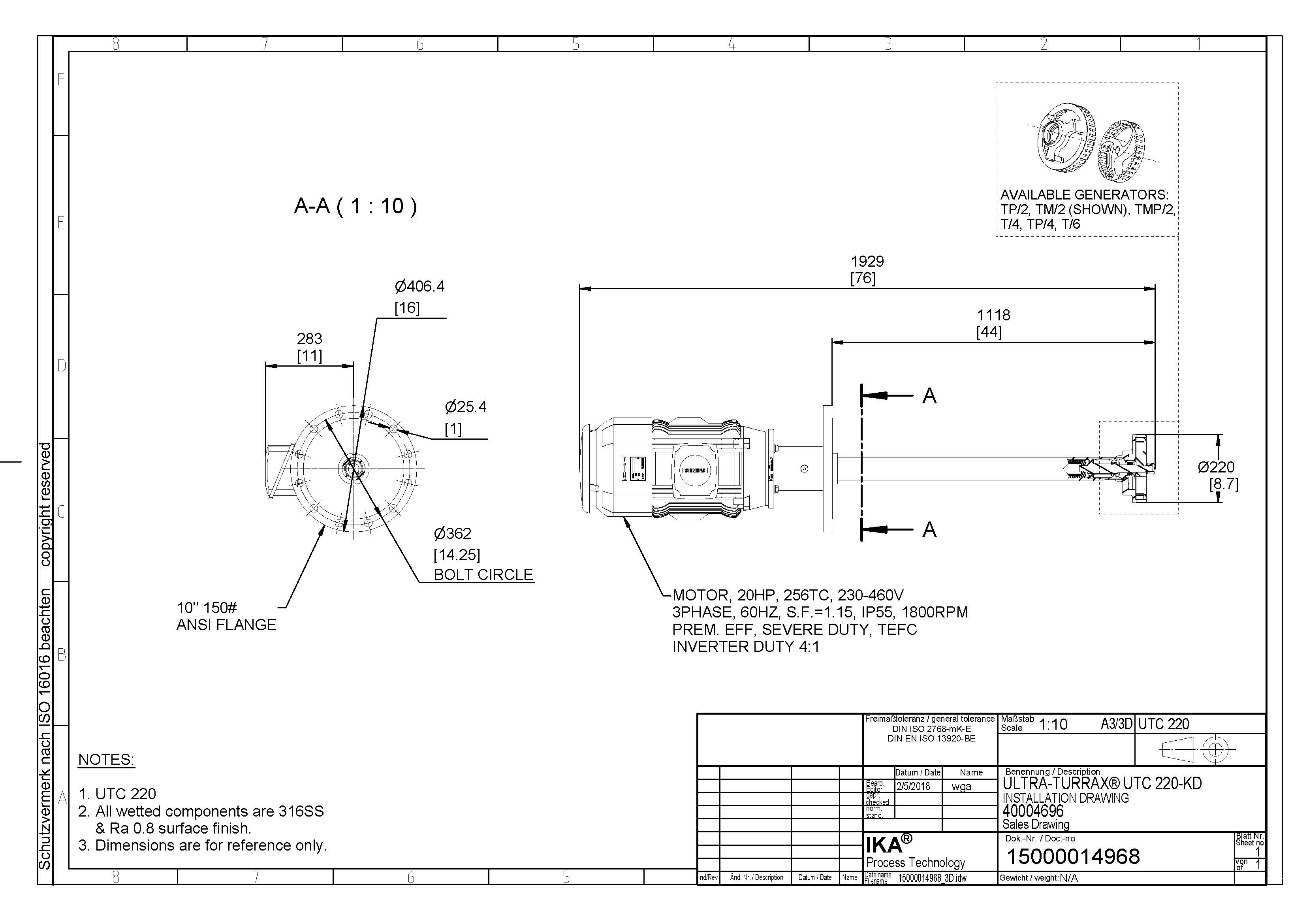

| UTC 220/KD | 660 | 1800 | 20 | 18 | |
 |

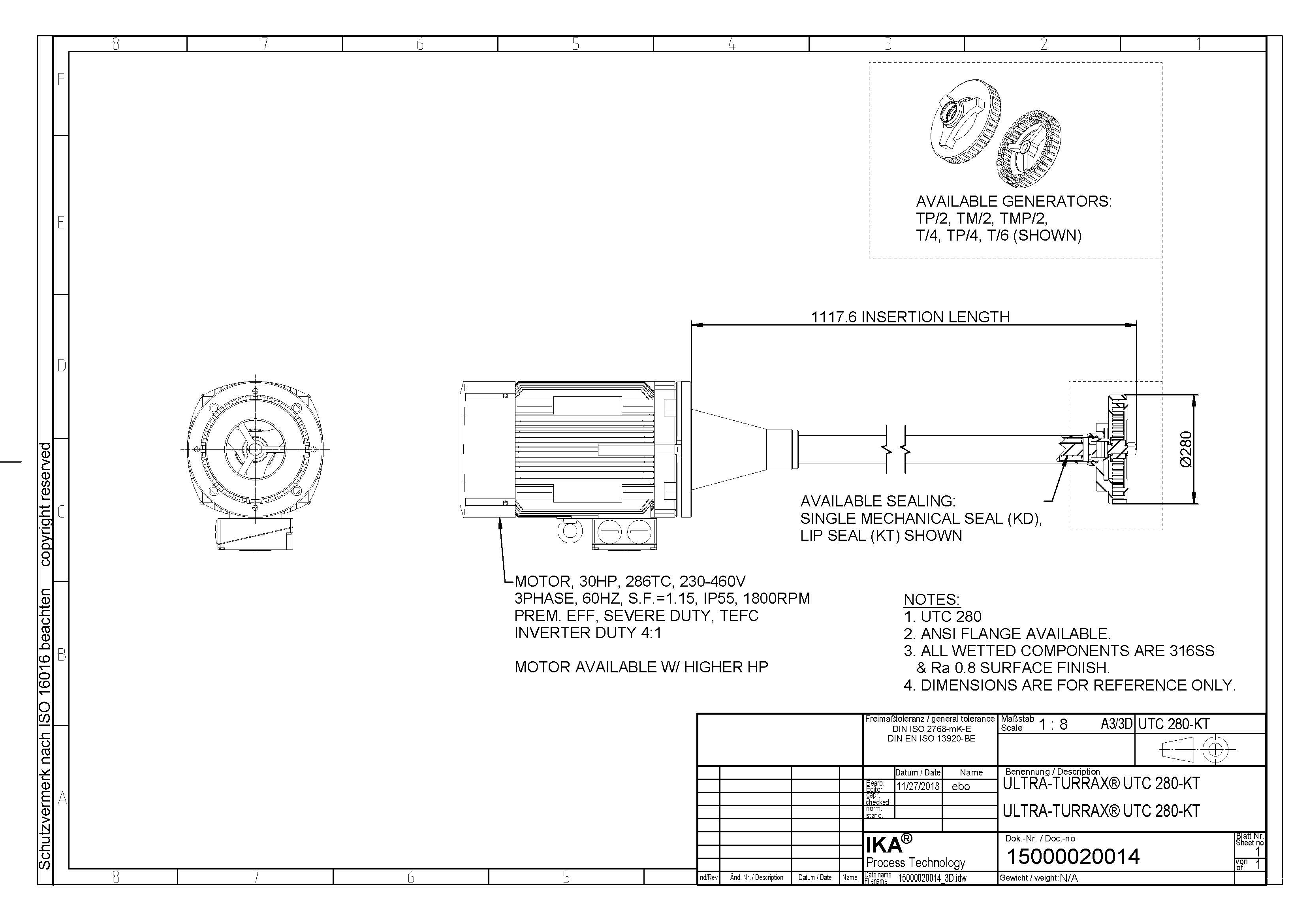

| UTC 280/KT | 900 | 1800 | 30 | 24 | |
 |

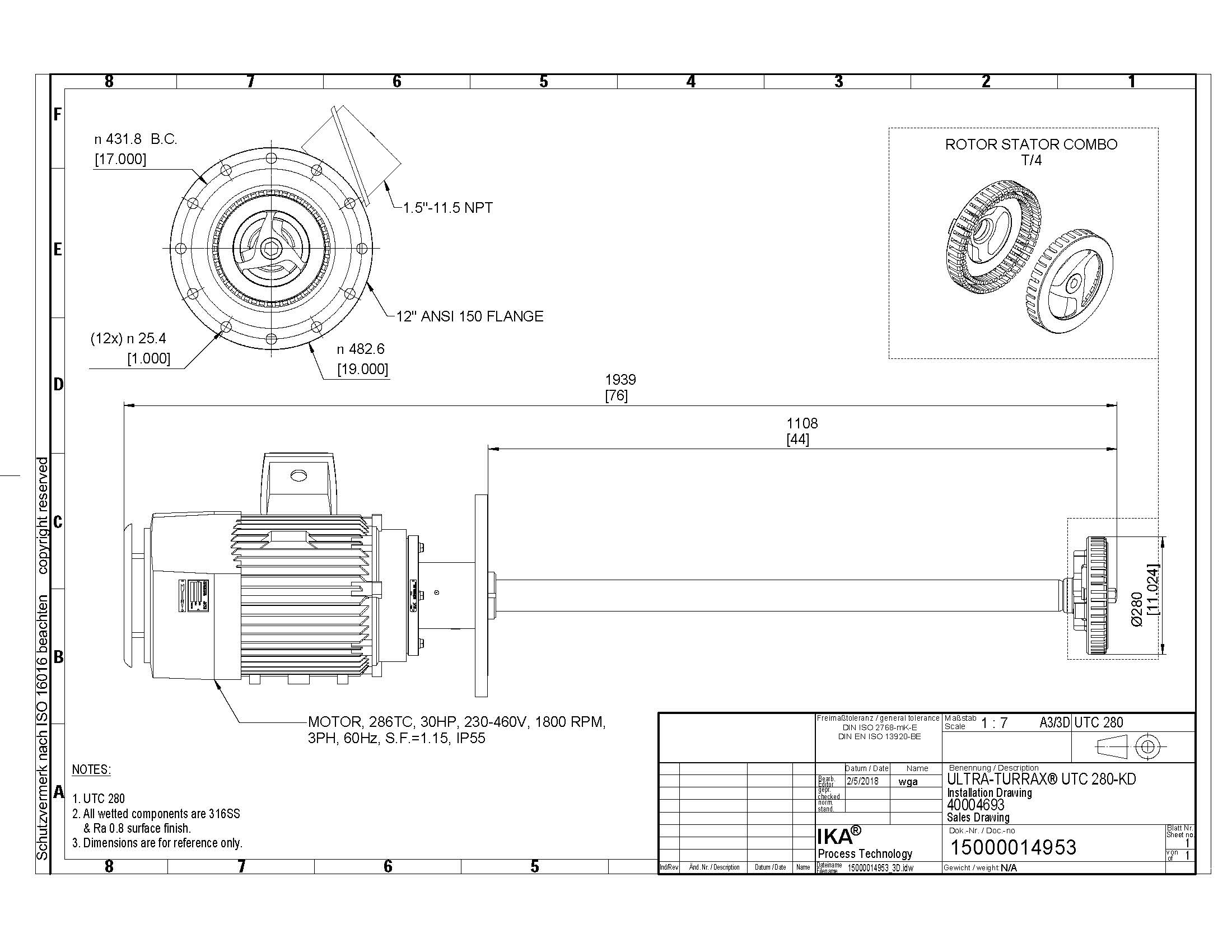

| UTC 280/KD | 900 | 1800 | 30 | 24 | |
 |

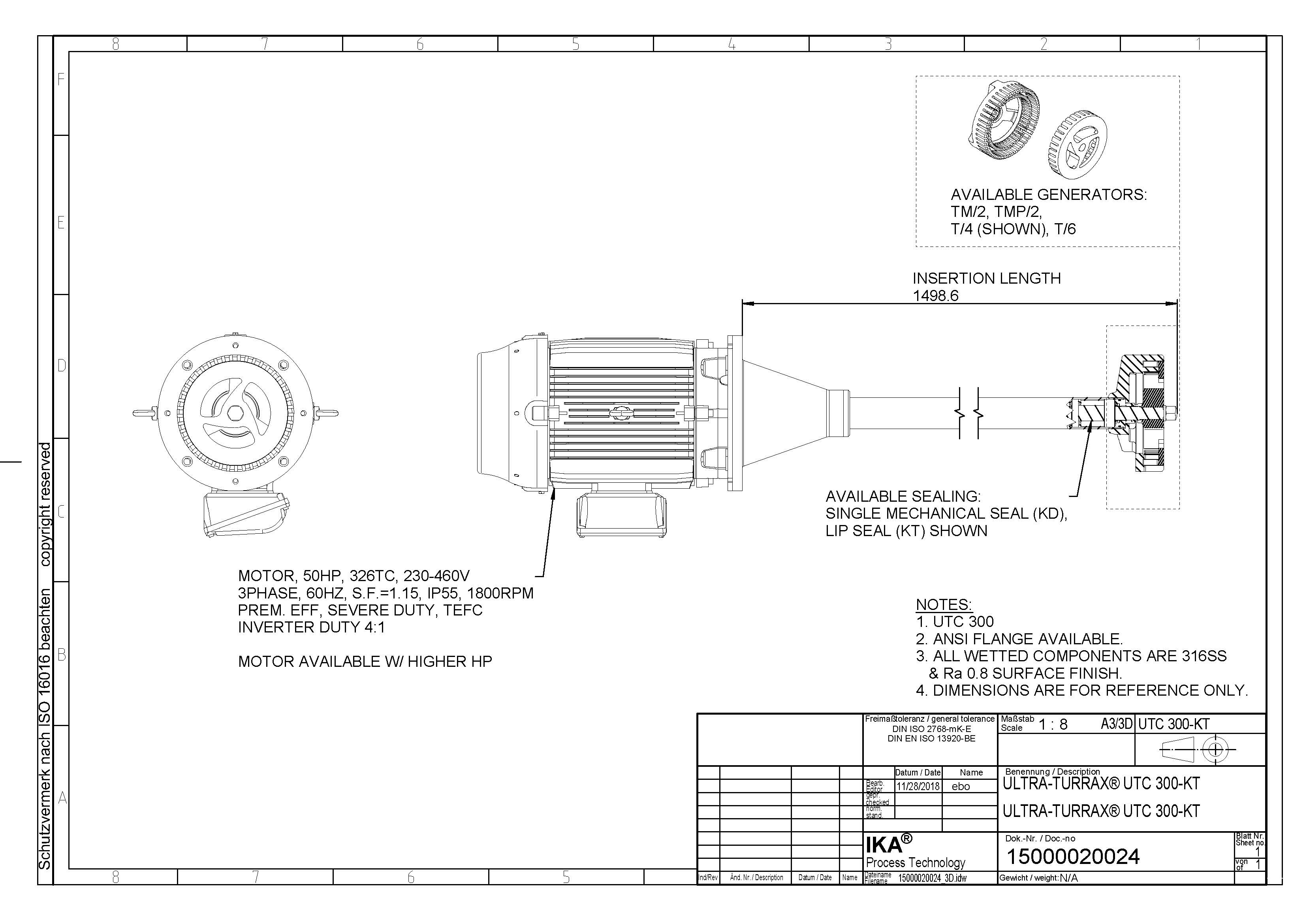

| UTC 300KT | 1000 | 1800 | 50 | 25 | |
 |
| UTC 300/KD | 1000 | 1800 | 50 | 25 | |
 |
| UTC 330/KT | 1300 | 1200 | 50 | 18 | |
|
| UTC 330/KD | 1300 | 1200 | 50 | 18 | |
|
| UTC 350/KT | 1500 | 1200 | 75 | 20 | |
|
| UTC 350/KD | 1500 | 1200 | 75 | 20 | |
